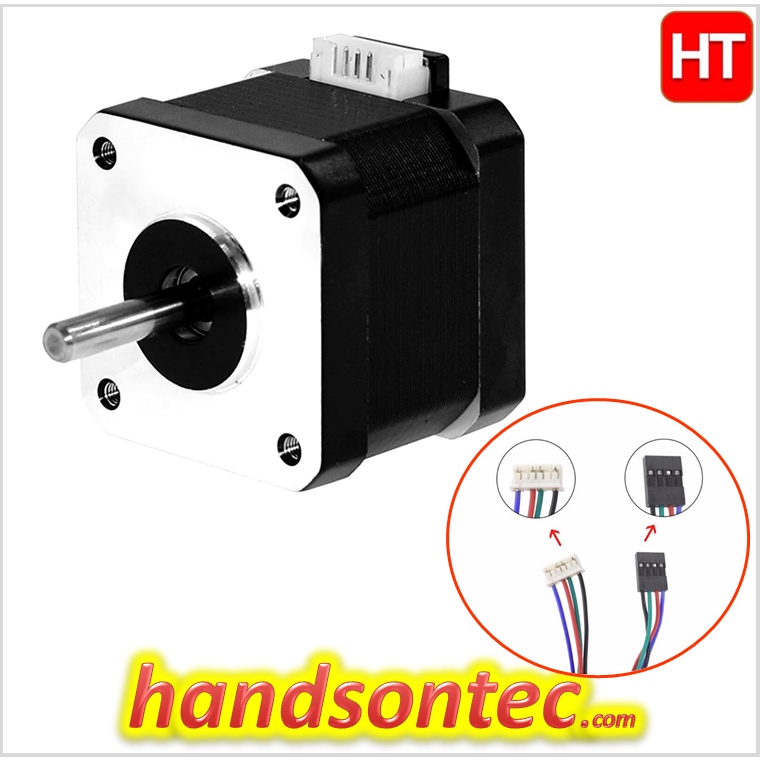

A stepper motor to satisfy all your 3D-Printer, robotics, Linear Motion projects needs! This 4-wire bipolar stepper has 1.8° per step for smooth motion and a nice holding torque. The motor was specified to have a max current of 1.7A/phase so that it could be driven easily with common motor shield for Arduino (or other motor driver) and a wall adapter or lead-acid battery. The motors are supplied with a 50cm long power cable with a 4-pin-to-6pin connector.

Pack of 1-piece/lot.

Brief Data:

-Nema17 Bipolar Stepper Motor.

-Number of Phase: 2.

-Step Angle: 1.8°.

-Phase Voltage: 2.6Vdc.

-Phase Current: 1.5A.

-Resistance: 1.5Ω ±10%.

-Inductance: 2.8mH ±20% (1KHz).

-Number of Wire: 4 (100cm Length).

-Holding Torque: 43N.cm.

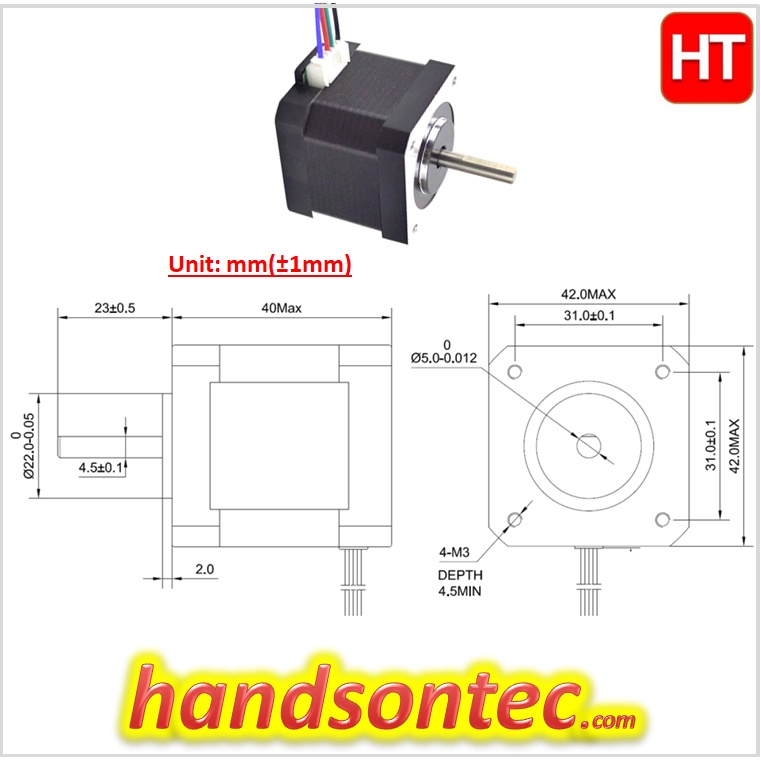

-Shaft Diameter: Ø5mm (D-Cut).

-Motor Body Length: 40mm.

-Mass: 290g.

Image is for package illustration purpose only. Refer to product specs for detail.
