1.27mm Pitch Multicolor Flat Ribbon Cable~2meter/pack.

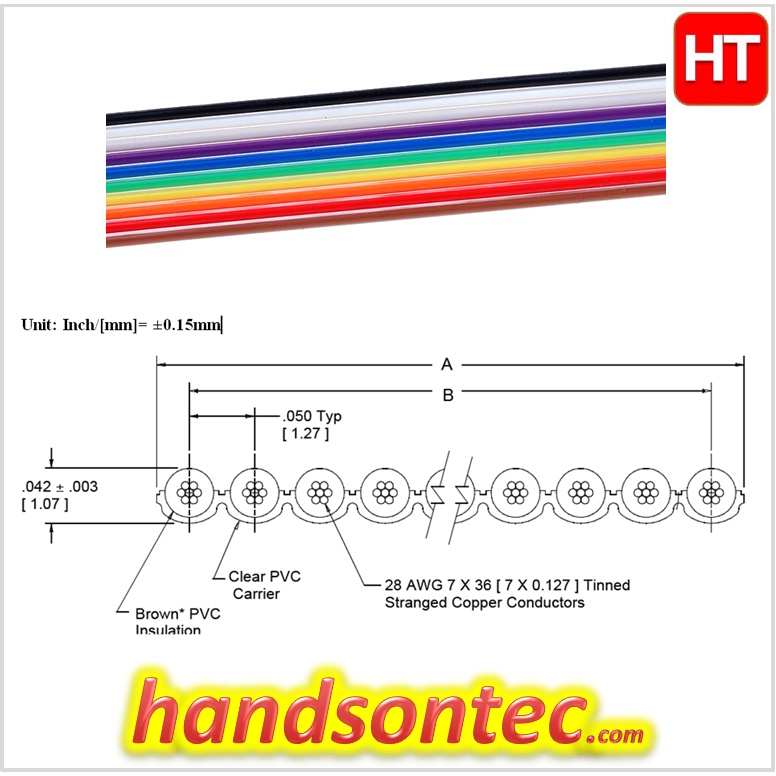

This series of 10 color repeat clear carrier color coded ribbon cable, 28-AWG wire on 0·05inch center, permits mass termination to a broad line of IDC connectors. Stranded wire provides flexibility and extended product life. A spacing of 0.05inch (1.27mm) is the most usual, allowing for a two-row connector with a pin spacing of 0.10inch (2.54mm).

Pack of 2-Meters/Pack.

Brief Data:

-Cable Gauge: 28-AWG.

-Pitch: 1.27mm.

-Color: 10 Color Repeat, Clear Carrier.

-Conductor: Tinned Stranded Copper.

-Conductor Strand: Ø0.12mmx7 Strand.

-Voltage Rating: 300V.

-Characteristic Impedance: Unbalanced 105Ω.

-Capacitance: 46pF/m.

-Inductance: 0.49μH/m.

-Insulation Resistance: 100MΩ/M min.

-Operating Temperature: -20˚C to +105˚C.

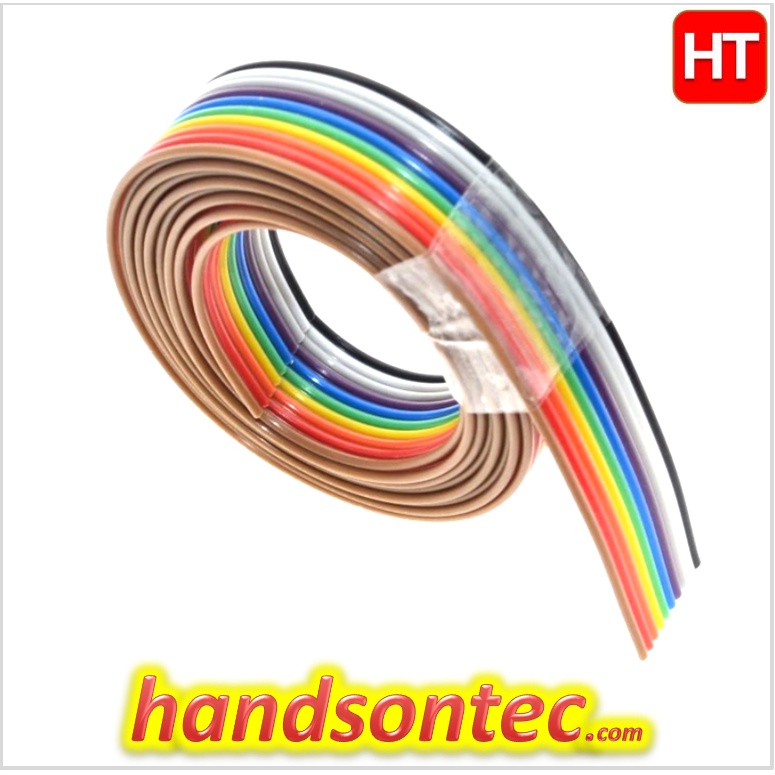

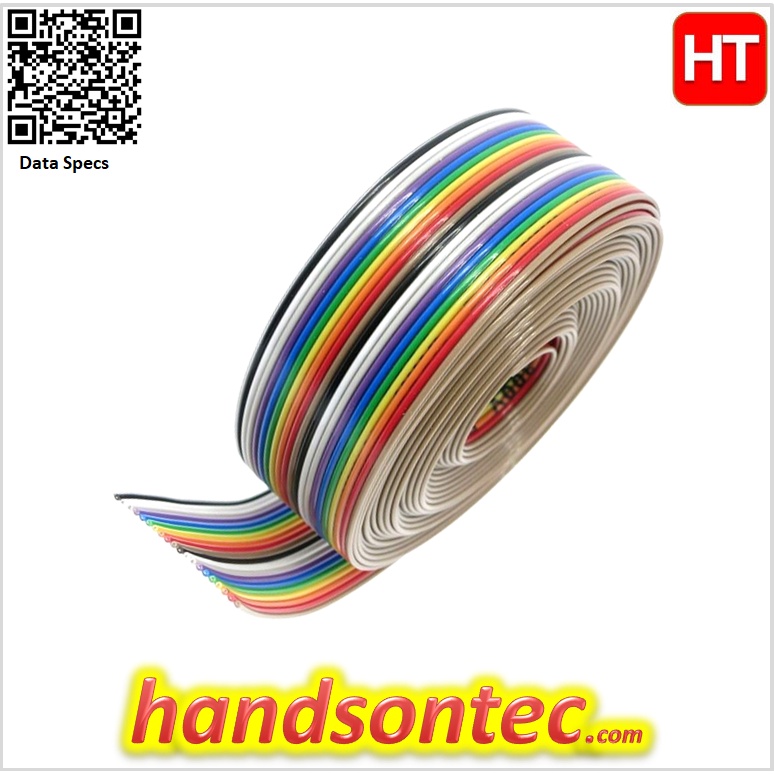

Image is for package illustration purpose only. Refer to product specs for detail.
