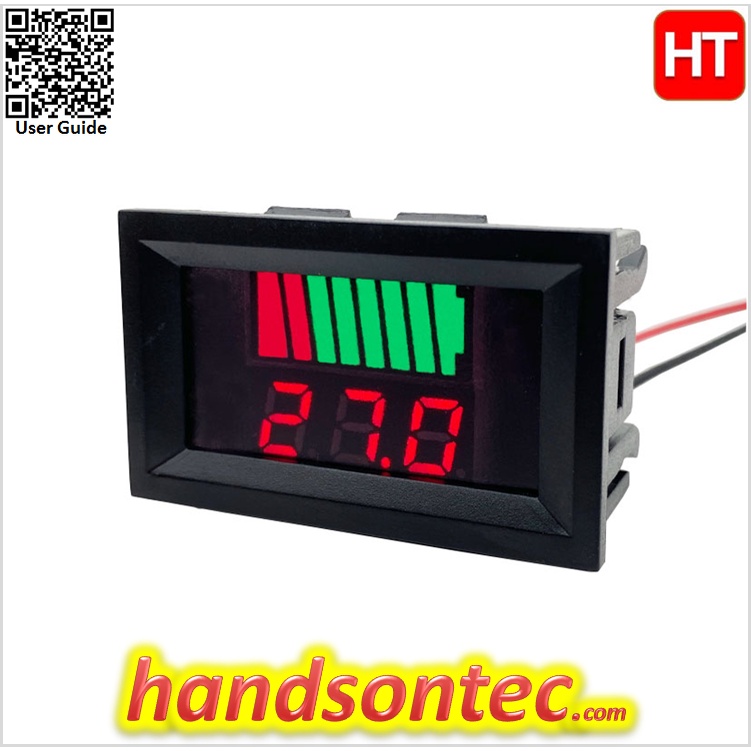

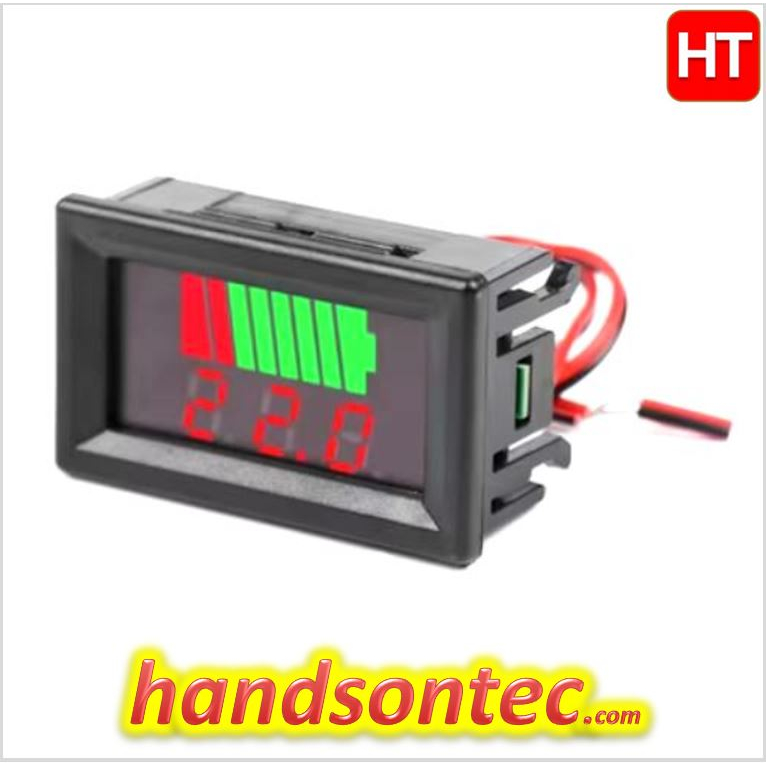

12V~48V SLA Battery Capacity Indicator Module

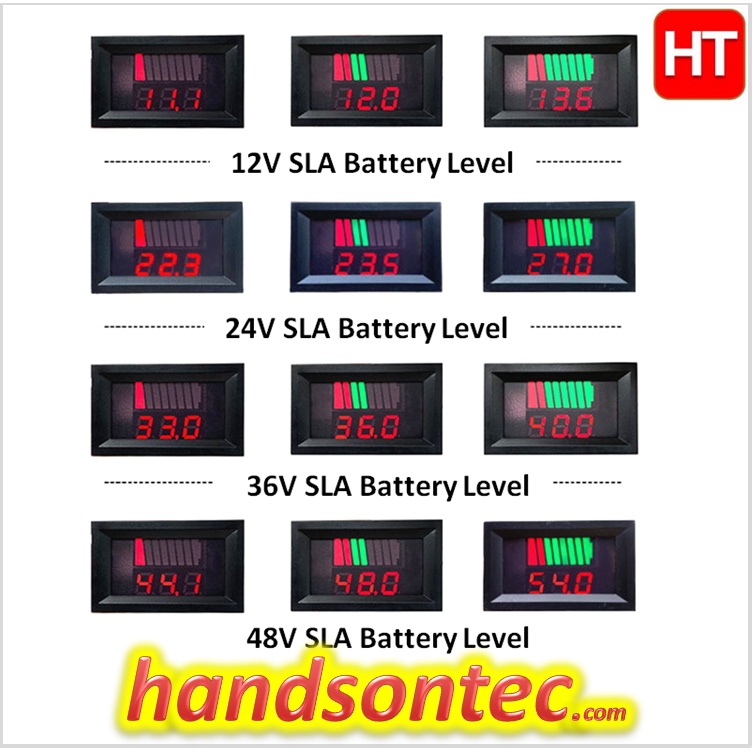

8-Segment Bar Graph and 3-digit display for Sealed Lead Acid (SLA) capacity meter. Suitable for 12V/24V/36/48V SLA battery level measurement. Auto ranging with SLA batter connected.
Pack of 1-piece/lot.
Brief Data:
- Bar graph: 8- Bar-graph.
- Digital Display: 3-Digit.
- Battery Level Indicator Range: (11.1 ~ 54) VDC.
- Operating Current: (5~15) mA.
- Bar Graph Resolution: 10%, 25%, 40%, 50%, 60%, 75%, 90%, 100%.
- Ranging: Auto.

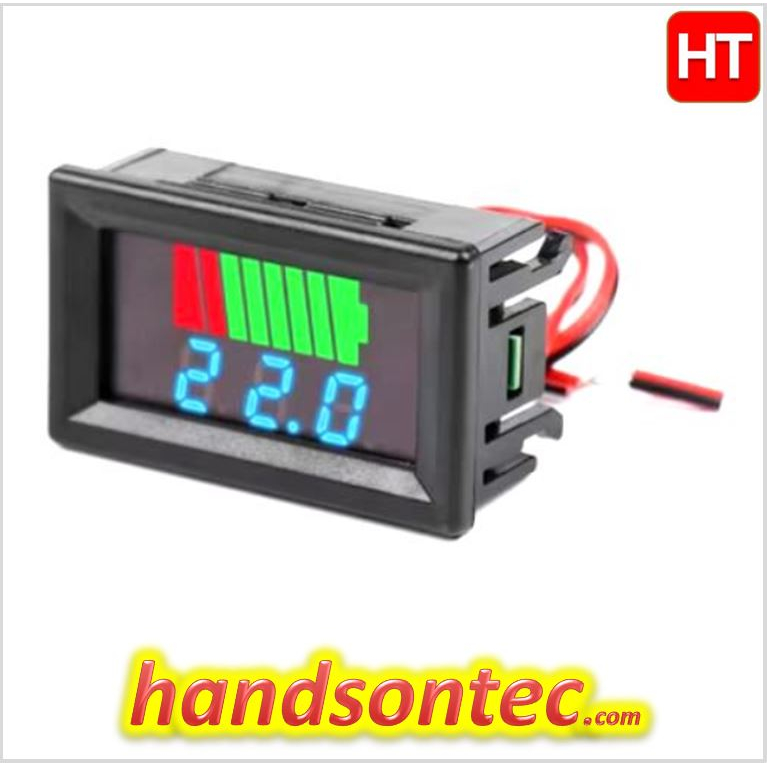

- Display Color: Red, Blue & Green.

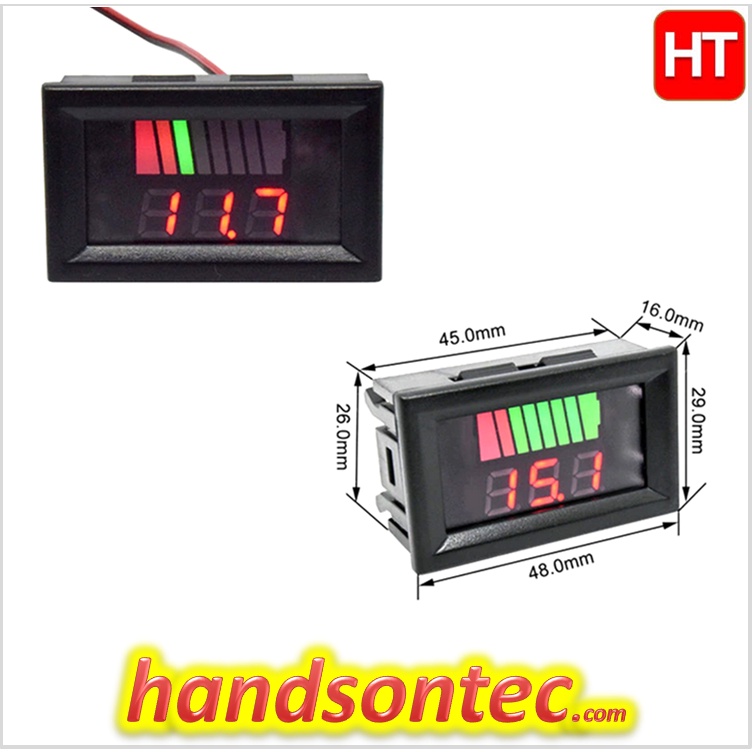

- Dimension (L x W x H): (47x23x15) mm.
- Mounting Type: Clip-On Panel Mount.
- Operating Temperature: -10℃~65℃.
- Weight: 5g.
Image is for package illustration purpose only. Refer to product specs for detail.
