Straight Internal Connector

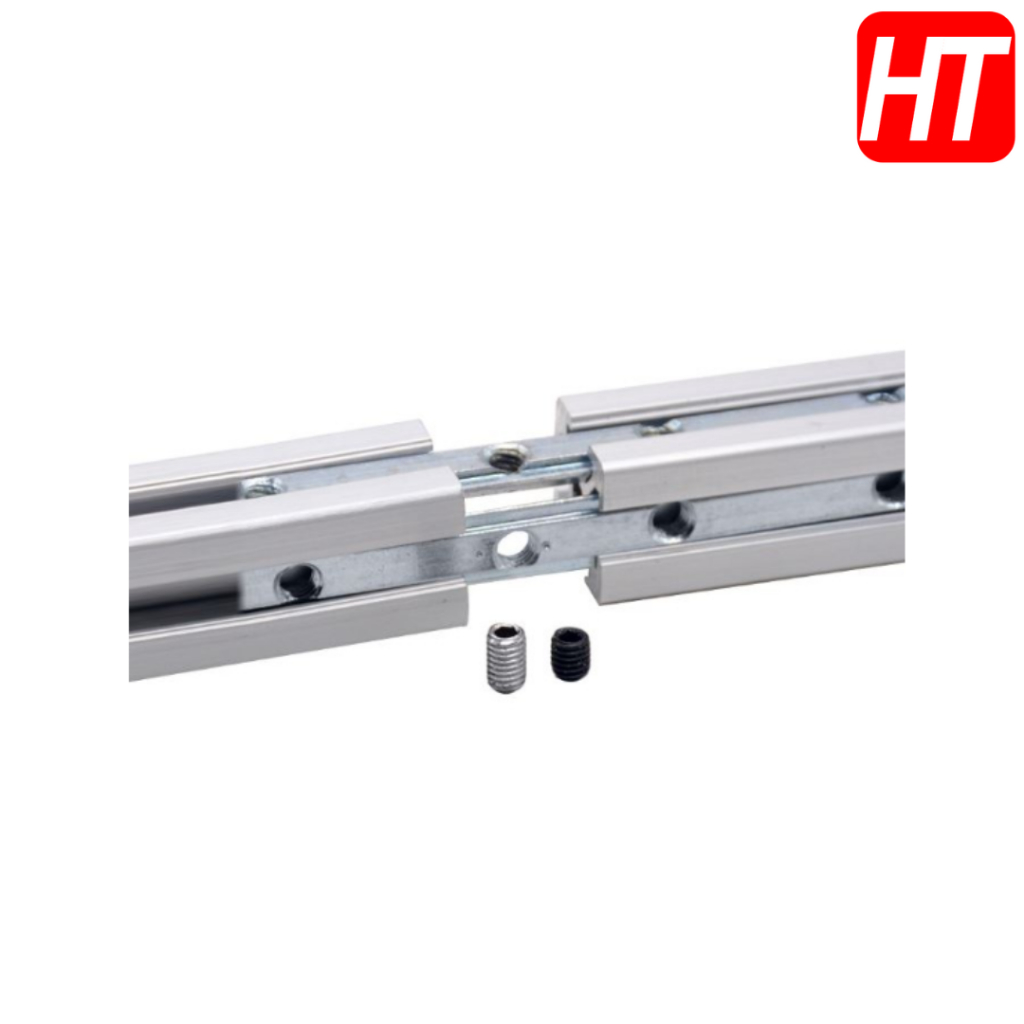

Straight aluminium extrusion profile straight joint internal connector. This straight connectors are very useful when working with aluminium extrusion profiles where you need to join two pieces together and are widely used in cnc machines, 3d printers and variety of other DIY applications.

Pack Included 1 x Straight Line Connector, 4 x Set Screws.

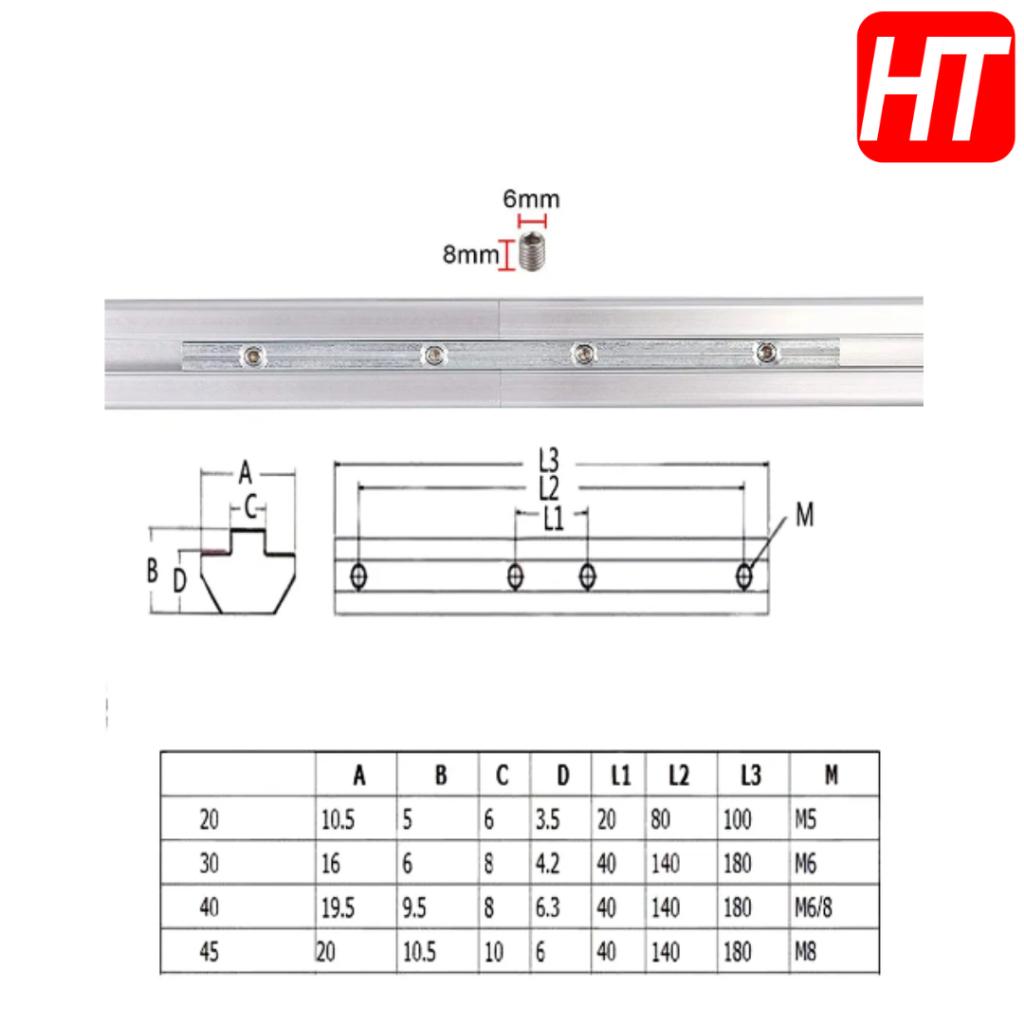

Brief Data:

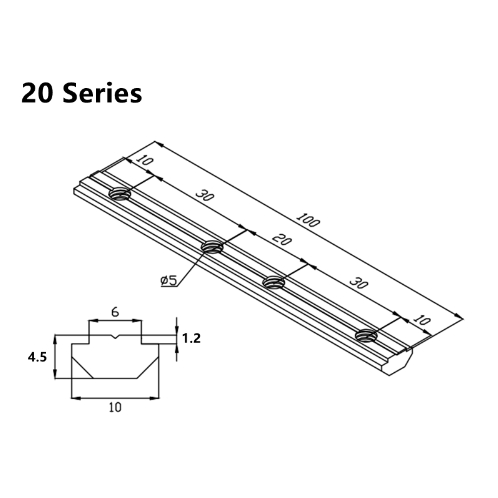

-2020 Straight Line Connector

Material: Zinc Plated Carbon Steel

Size: 100x 10 x 5mm (LxWxH)

Length: 100mm

Width: 10mm

Thickness: 5mm

Screw hole: M5 (allen key size: 2.5mm)

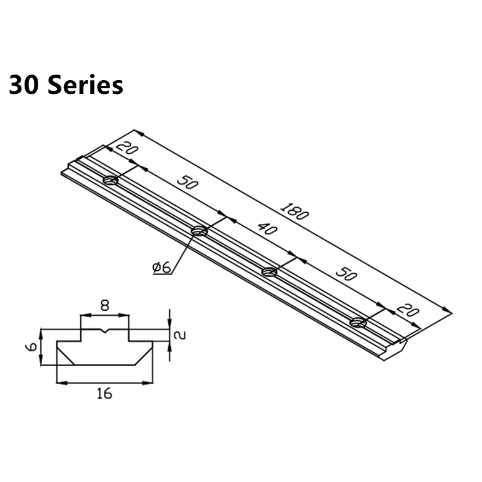

-3030 Straight Line Connector

Material: Zinc Plated Carbon Steel

Size:180 x 16 x 6mm(LxWxH)

Length: 180mm

Width: 16mm

Thickness: 6mm

Screw hole: M6 (allen key size: 3mm)

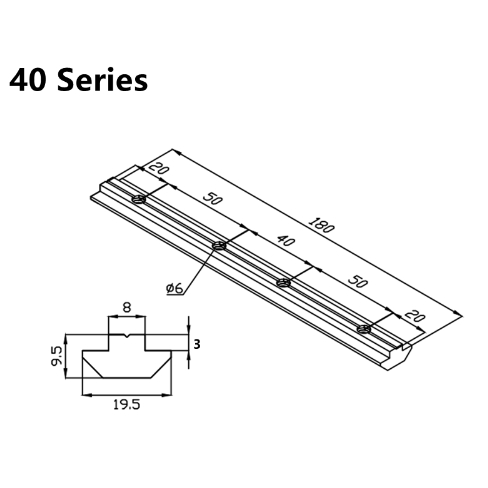

4040 Straight Line Connector]

Material: Zinc Plated Carbon Steel

Size:180 x 20 x 10mm(LxWxH)

Length: 180mm

Width: 16mm

Thickness: 6mm

Screw hole: M6 (allen key size: 3mm)
