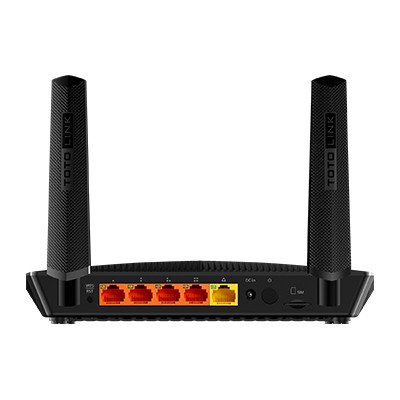

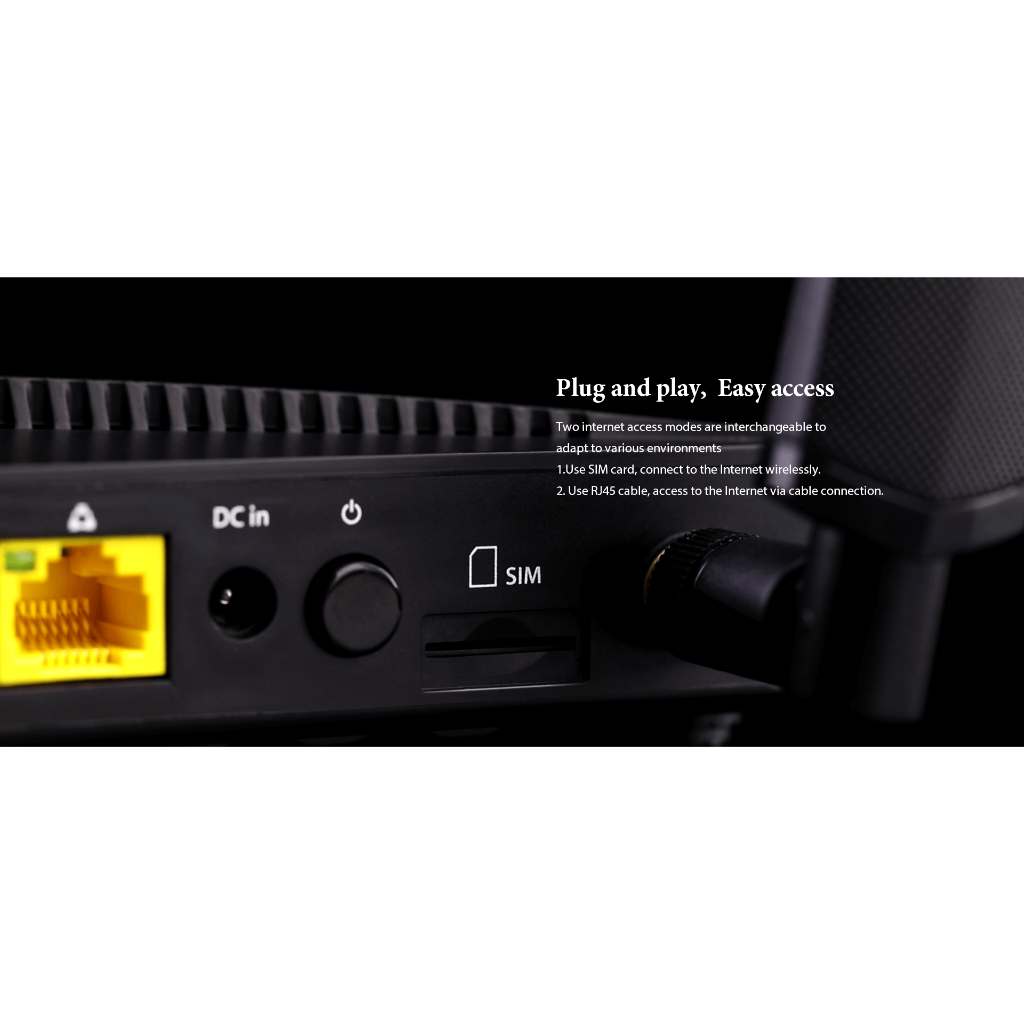

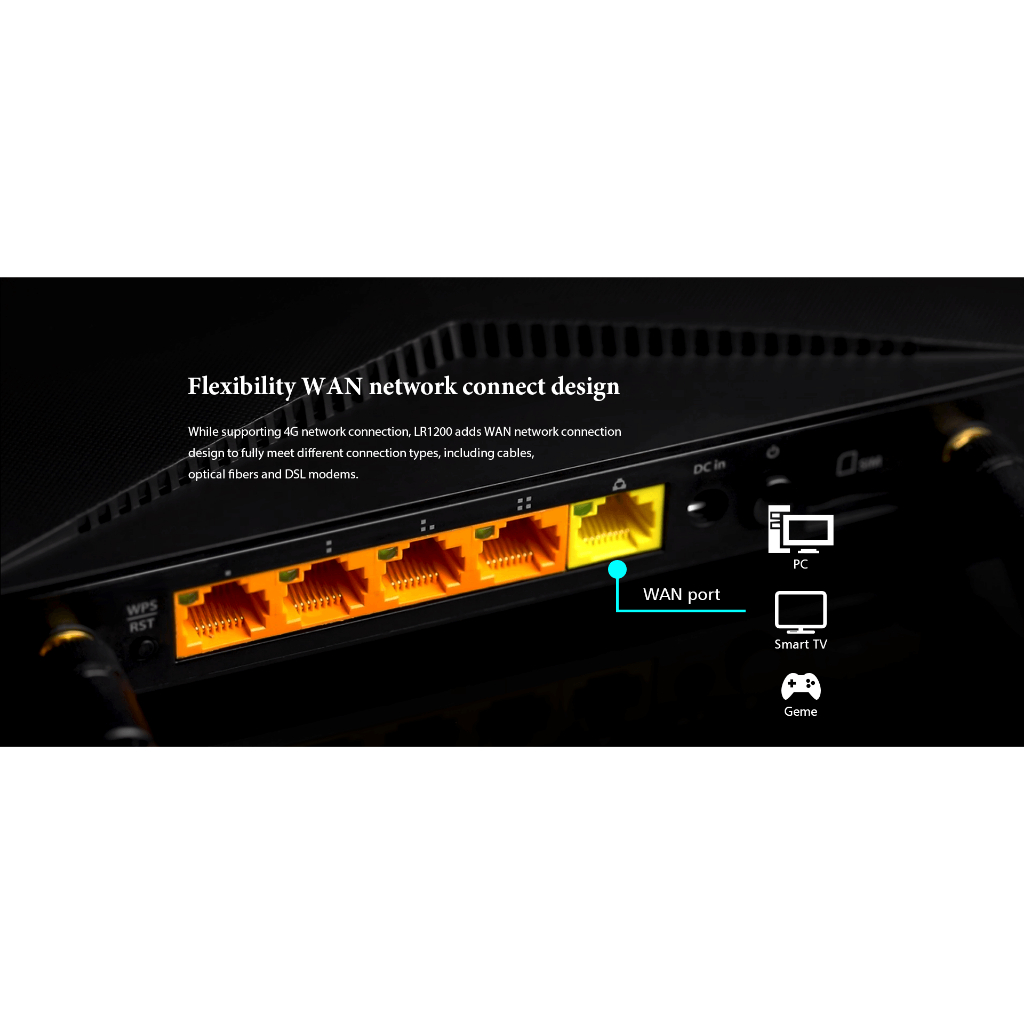

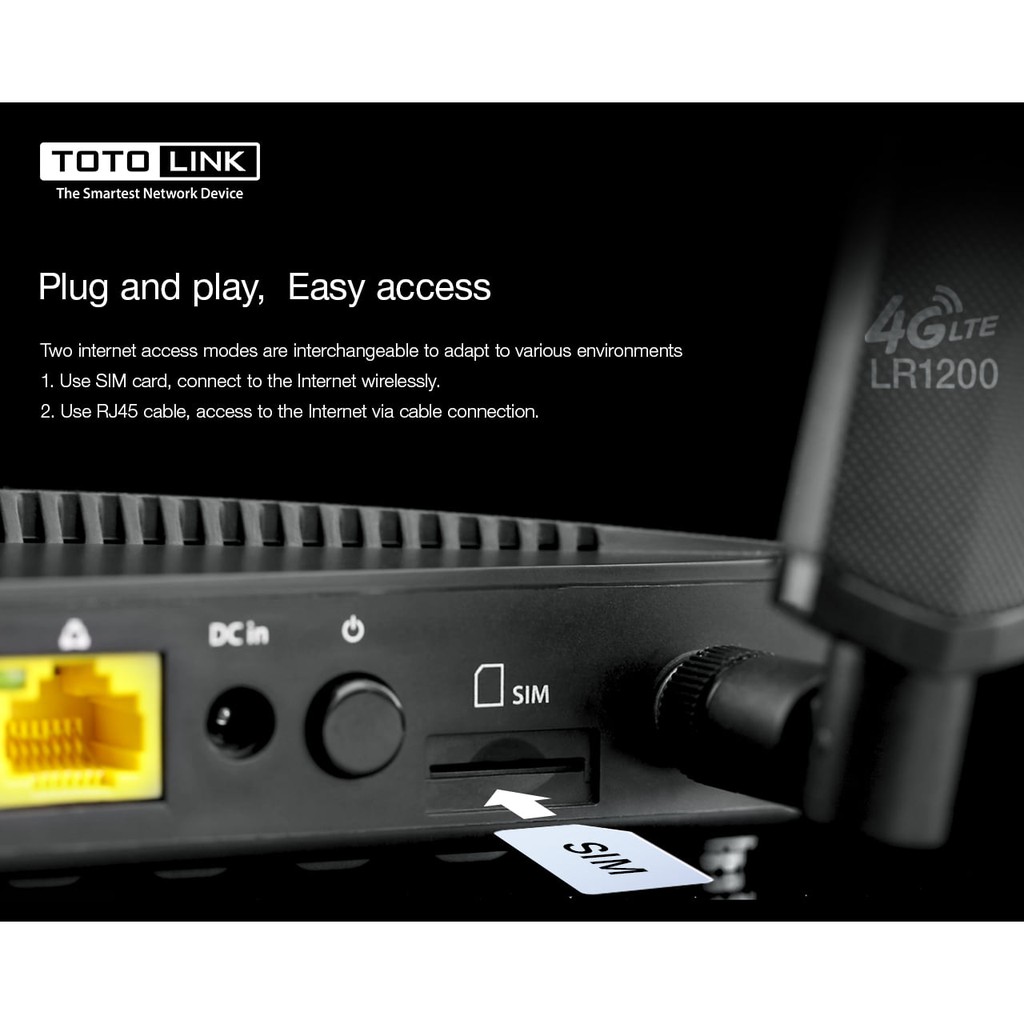

Features • Complies the IEEE 802.11ac/a/b/g/n standards • Convenient 4G network access, share your 4G LTE network with multiple Wi-Fi devices and achieves download speeds of up to150Mbps and upload speeds of up to 50Mbps • Creates a simultaneous dual band Wi-Fi network ,with maximum speeds of up to 300Mbps on the 2.4GHz band and 867Mbps on the 5GHz band • Powerful , integrated antennas provide stable wireless connections and better coverage • Supports the LTE FDD, LTE TDD & WCDMA network type • Requires no configuration ,just insert a SIM card and turn it on to enjoy a fast wireless connection • Provides 64/128-bit WEP, WPA, WPA2 and WPA/WPA2 encryptions • Supports IP, MAC, URL filtering , Port Forwarding and DMZ • Supports high standard of 8KV/15KV ESD protection Hardware Features Interface: 1 x 10/100Mbps WAN port(With LED) 4 x 10/100Mbps LAN port(With LED) 1 x Standard SIM card slot,1 x DC jack Power Supply: DC12V/1A Button: 1 x RST/WPS Button | 1 x Power On/Off Button LED Indicator: 1 x Sys, 1 x SMS, 1 x WIFI, 1 x 2G/3G, 1 x LTE, 4 x Signal Antenna: 2 x 5dBi internal antennas (2.4/5GHz) | 2 x 5dBi detachable antennas (4G) Dimensions (L x W x H): 120 x 180 x 256 mm Wireless Features Standards: IEEE 802.11ac, IEEE 802.11a, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n RF Frequency: 2.4GHz/5GHz EIRP: 2.4GHz < 20dBm | 5GHz < 20dBm Data Rate: 2.4GHz :Up to 300Mbps | 5GHz :Up to 867Mbps Wireless Security: 64/128-bit WEP,WPA and WPA2 Reception Sensitivity: 2.4G : 11b 11M : -81dBm@8% PER 11g 54M : -68dBm@10% PER 11n HT20 MSC7 : -65dBm@10% PER HT40 MSC7 : -62dBm@10% PER 5G : 11a 54M : -68dBm@10% PER 11n HT20 MCS7 : -65dBm@10% PER HT40 MCS7 : -62dBm@10% PER 11ac VHT80 MCS9 : -51dBm@10% PER LTE Mode LTE chip(PCIe, optional, customizable): Qualcomm MDM9x07 LTE Network Type and Band: LTE FDD : B1/B3/B7/B8/B20 LTE TDD : B38/B39/B40/B41 WCDMA : B1/B5/B8 Software Features Home State: WAN information, LAN information, System information WAN Type: Static IP, DHCP, PPPoE, 4G Wireless Functions: Multiple SSIDs, MAC Authentication, WPS Device capacity: 2.4G : Max 32 users | 5G : Max 32 users Firewall: MAC Filtering, IP/Port Filtering, URL Filtering, DMZ Management: Password, System Config, Time Setup, Firmware update, System Log Other Information System Requirements: Microsoft® Windows® 98SE, NT, 2000, XP, Vista or Windows 7, 8, 10, Mac® OS NetWare®, UNIX® or Linux Environment: Operating Temperature : 0℃~50 ℃ (32 ℉~122℉) Storage Temperature : -40℃~70 ℃ (-40 ℉~158℉) Operating Humidity : 10%~90% non-condensing Storage Humidity : 5%~90% non-condensing
