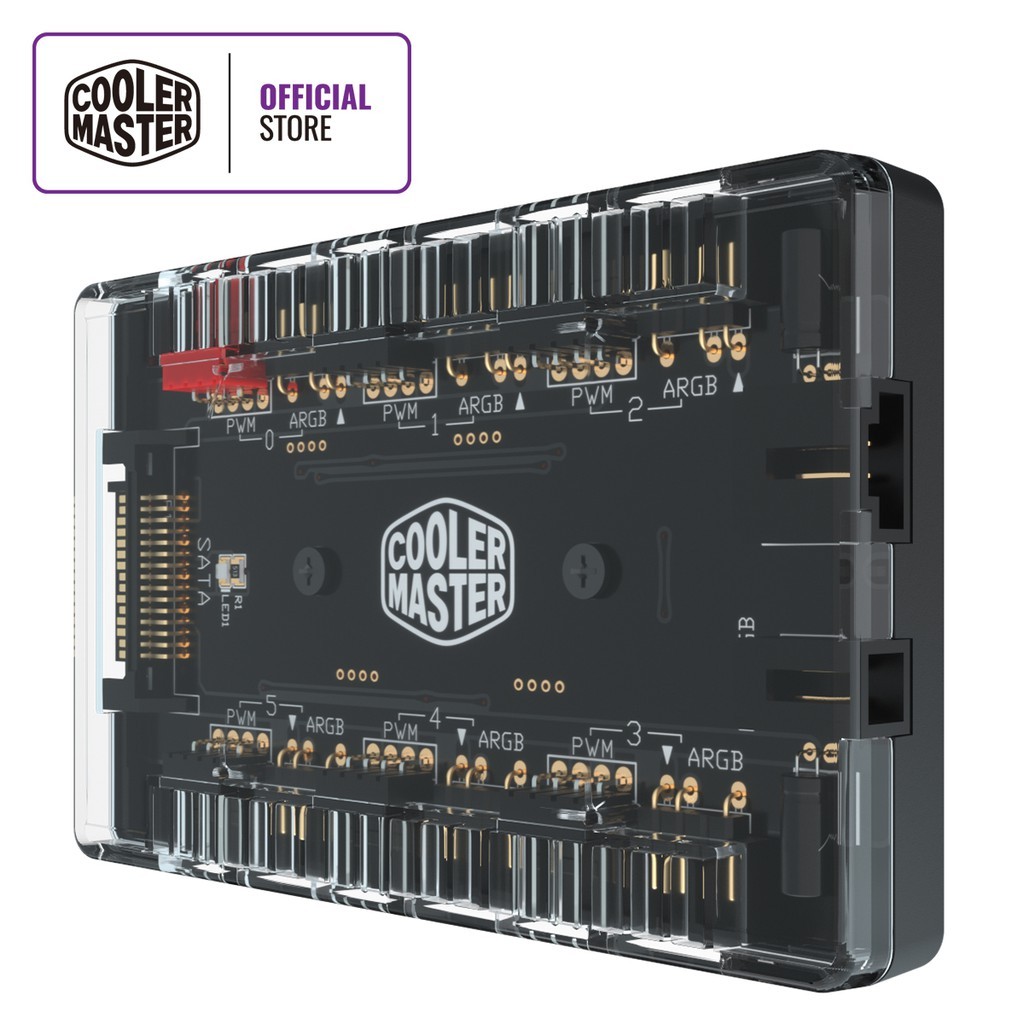

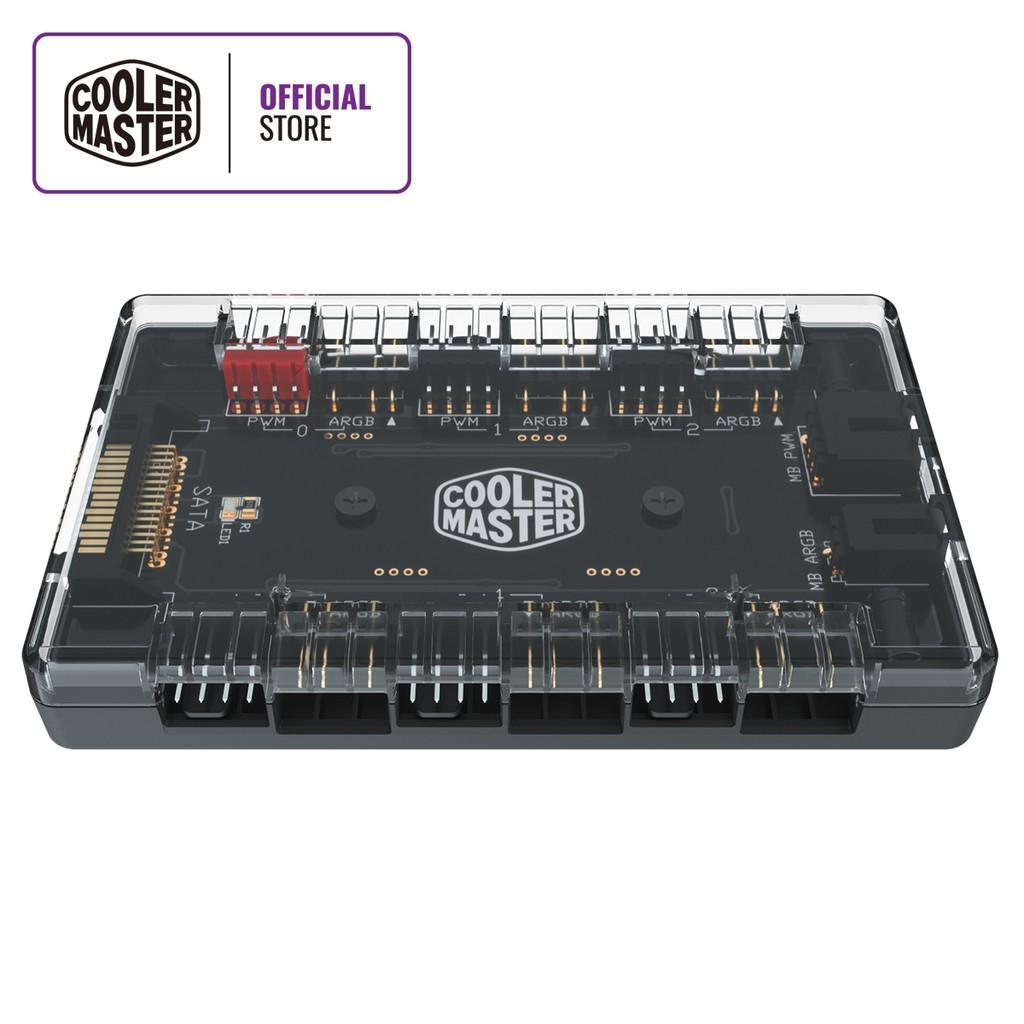

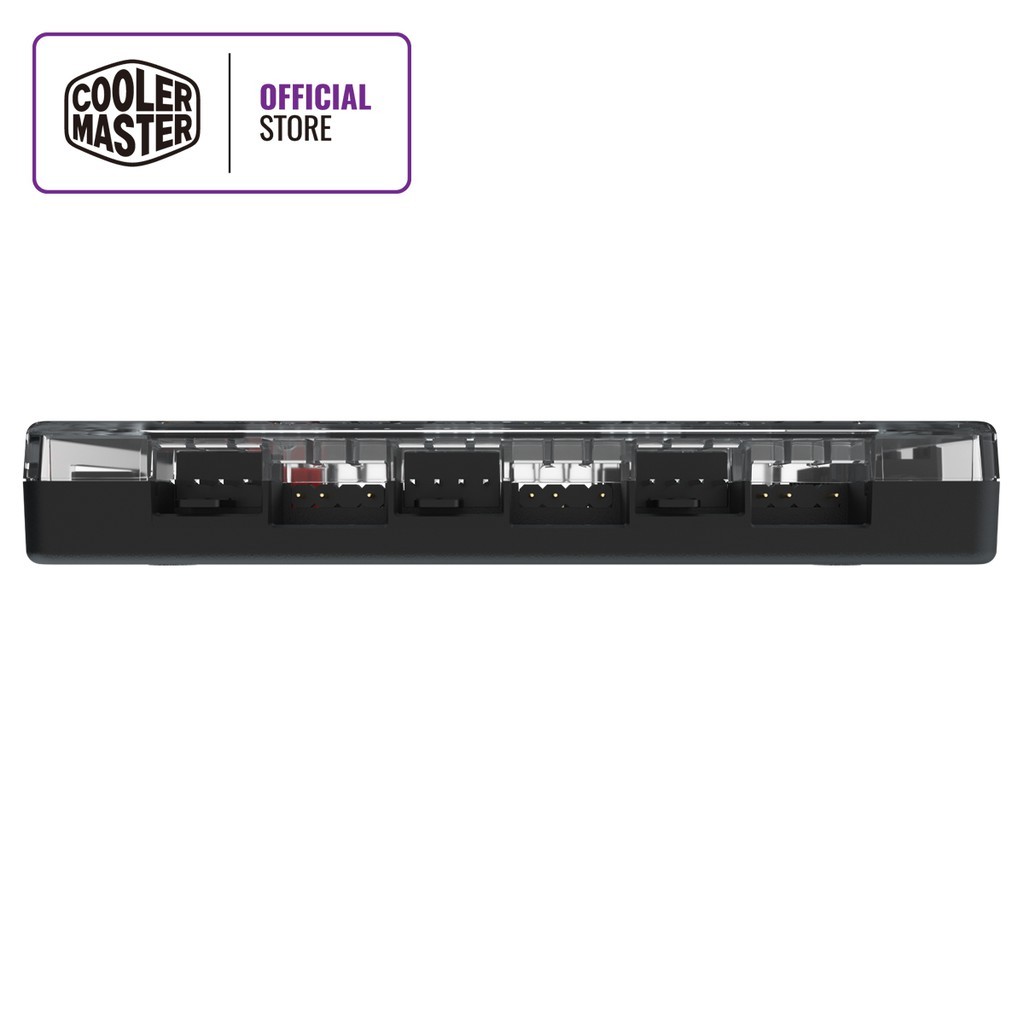

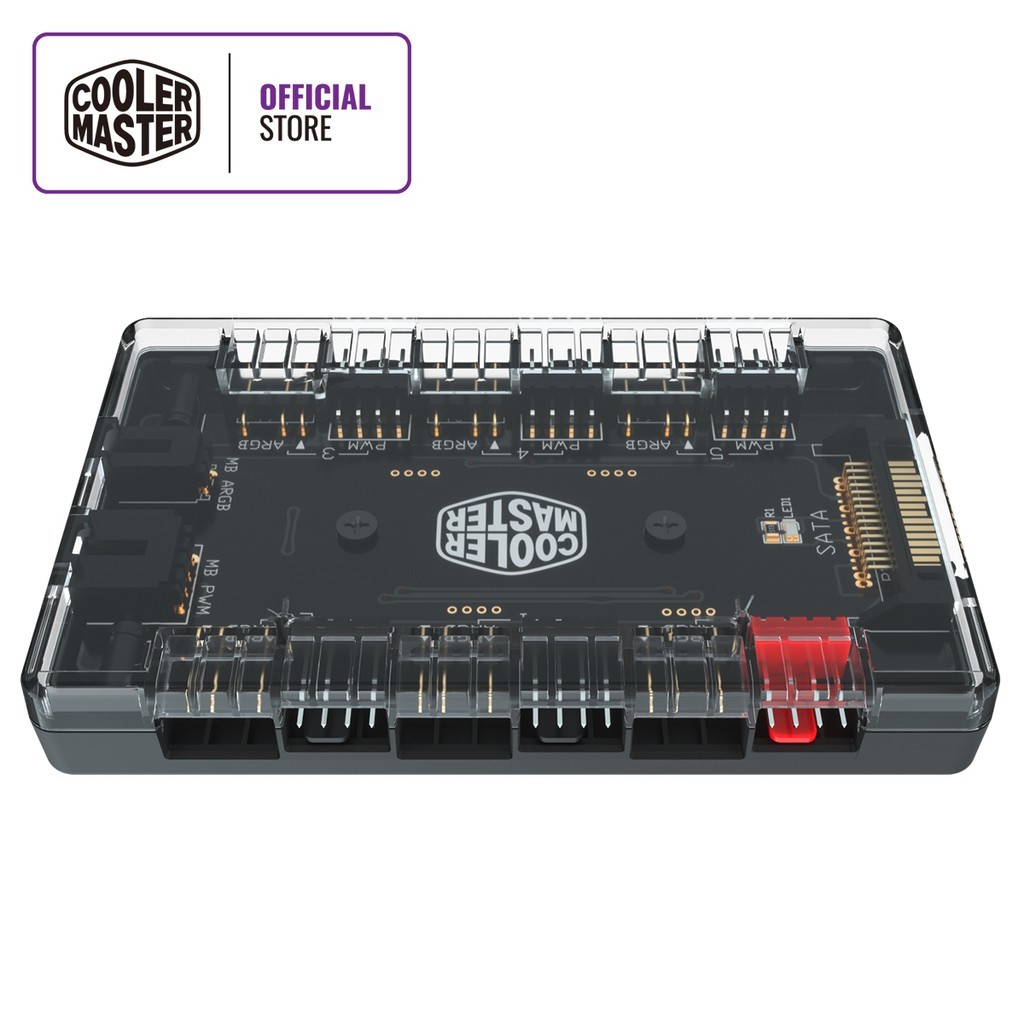

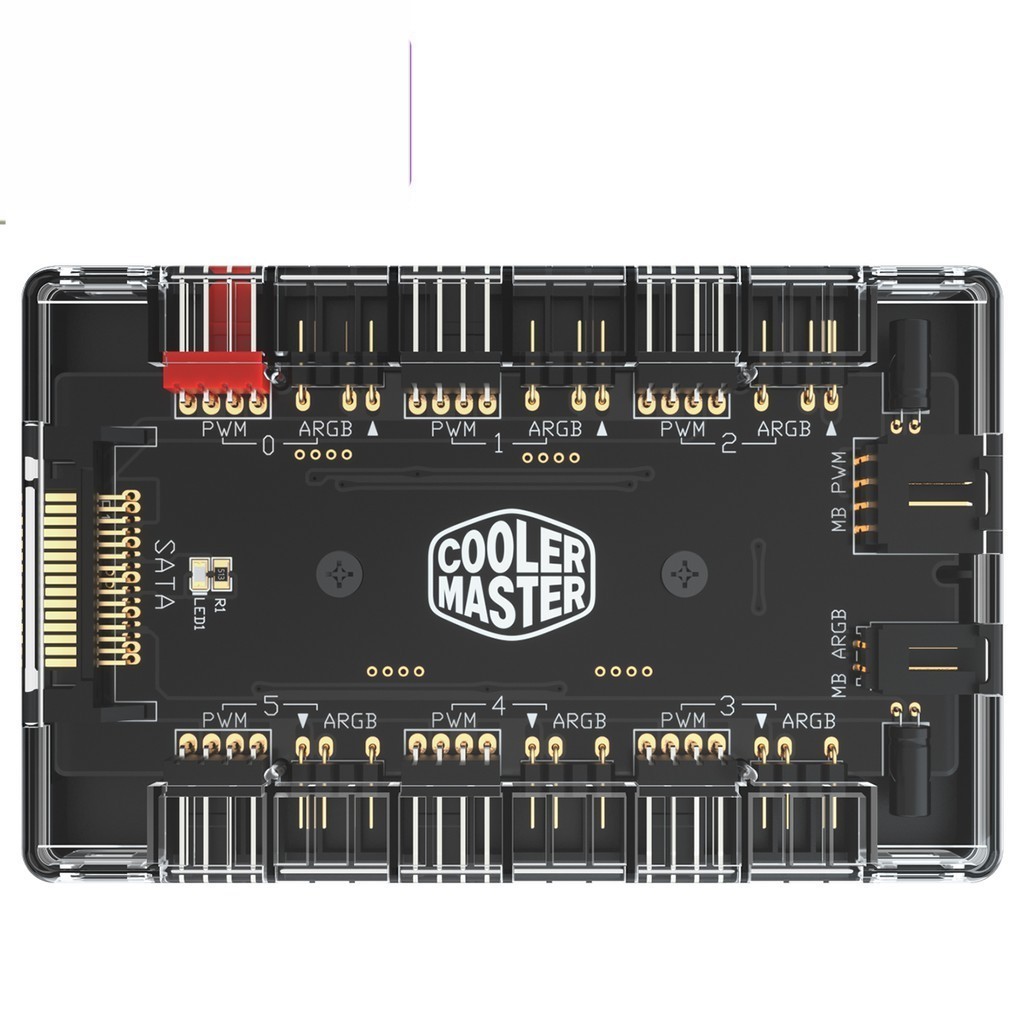

The MasterFan ARGB and PWM HUB is capable of connecting up to 6 sets of ARGB (3-pin) headers & PWM headers simultaneously. Its small and compact design allows you to control your PWM ARGB fans in high efficiency while still keeping your cables neat and tidy, making it the best choice for users seeking no-fuss installation. Connect it to your Mainboard ARGB header.

𝐅𝐄𝐀𝐓𝐔𝐑𝐄𝐒

• 6 ARGB Ports (5V, 3pin)

• 6 PWM Fan Ports (4pin)

• Multi Connection

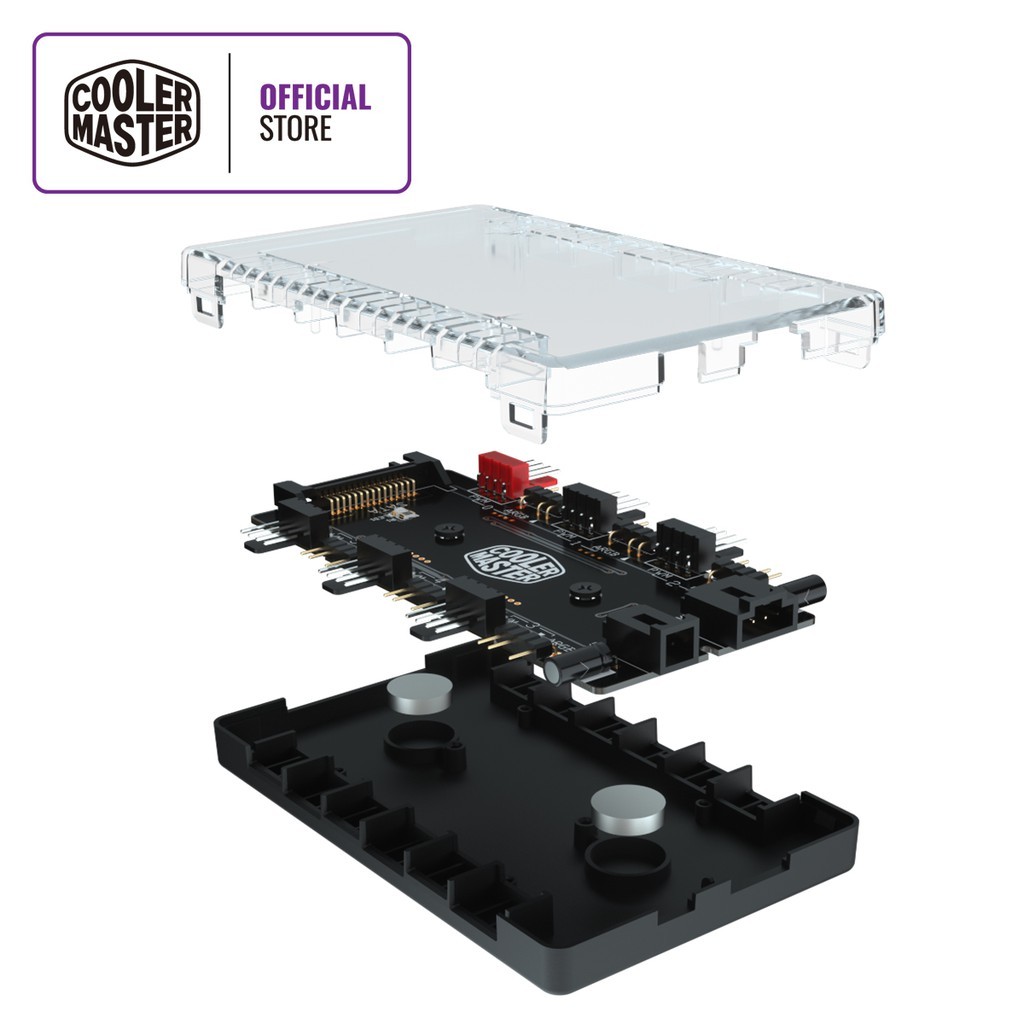

• Build-in Magnets for Easy Installation

• Metalic Surface and Small Build

• SATA Powered

• Size of the ARGB connector to be connected must be within 12*6mm

• Compatible with ASUS, MSI, GIGABYTE & ASRock ARGB Feature

𝐒𝐏𝐄𝐂𝐈𝐅𝐈𝐂𝐀𝐓𝐈𝐎𝐍𝐒

PRODUCT NAME : MasterFan ARGB and PWM HUB

PRODUCT NUMBER : MFX-ZHHN-1NNN6-R1

DIMENSIONS (L X W X H) : 103 x 65 x 16 mm / 4.1 x 2.6 x 0.6 inch

FAN CONNECTOR : 6 Ports x 4 Pin PWM

FAN RATED VOLTAGE : 12VDC

FAN SAFETY CURRENT : 2.0 A (1 Port) / Total 4.5 A ( 6 Ports)

RGB CONNECTOR : 6 Ports x 3 Pin Addressable RGB

RGB RATED VOLTAGE : 5V DC

RGB SAFETY CURRENT : 2.0 A (1 Port) / Total 4.5 A ( 6 Ports)

POWER CONNECTOR : SATA

POWER SAFETY CURRENT : 4.5 A (Max)

WEIGHT : 62g

WARRANTY : 2 Years
