AX73 - CPU - BROADCOM 1.5Ghz Triple Core, 512MB RAM

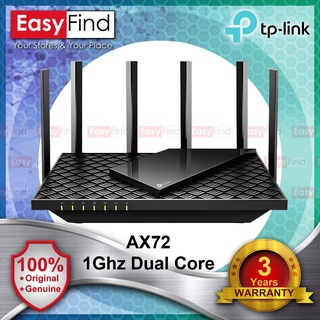

AX72 - QUALCOMM 1Ghz Dual Core, 512MB RAM
Same Specs
-Gigabit WiFi for 8K Streaming – 5400 Mbps WiFi for faster browsing, streamings, and downloading, all at the same time.†
-Fully Featured Wi-Fi 6 – Equips with the top structure of 4T4R and HT160 on the 5 GHz band to enable 4.8 Gbps ultra-fast connection.
-Connect 200+ Devices§ – Supports MU-MIMO and OFDMA to reduce congestion and quadruple the average throughput.‡**
-Extensive Coverage – 6× antennas and Beamforming ensure broad coverage.
-HomeShield – TP-Link's premium security services keep your home network safe with cutting-edge features for network and IoT protection.*
-More Vents, Less Heat – Improved vents area unleash the full power of the whole machine.
-USB Sharing – 1× USB 3.0 port enables easy media sharing and private cloud building.
WIRELESS
Standards Wi-Fi 6
IEEE 802.11ax/ac/n/a 5 GHz
IEEE 802.11ax/n/b/g 2.4 GHz
WiFi Speeds AX5400
5 GHz: 4804 Mbps (802.11ax)
2.4 GHz: 574 Mbps (802.11ax)
WiFi Range 3 Bedroom Houses
6× Fixed High-Performance Antennas
Multiple antennas form a signal-boosting array to cover more directions and large areas
Beamforming
Concentrates wireless signal strength towards clients to expand WiFi range
High-Power FEM
Improves transmission power to strengthen signal coverage
4T4R
Multiple streams in the same band strengthen the fault tolerance in transmission
WiFi Capacity High
Dual-Band
Allocate devices to different bands for optimal performance
4×4 MU-MIMO
Simultaneously communicates with multiple MU-MIMO clients
OFDMA
Simultaneously communicates with multiple Wi-Fi 6 clients
Airtime Fairness
Improves network efficiency by limiting excessive occupation
DFS
Access an extra band to reduce congestion
6 Streams
Connect your devices to more bandwidth
Working Modes
Router Mode
Access Point Mode
HARDWARE
Processor 1.5 GHz Triple-Core CPU
Ethernet Ports
1× Gigabit WAN Port
4× Gigabit LAN Ports
Static Link Aggregation (LAG) available with 2× LAN ports
USB Support
1× USB 3.0 Port
Supported Partition Formats: NTFS, exFAT, HFS+, FAT32
Supported Functions:
Apple Time Machine
FTP Server
Media Server
Buttons
Wi-Fi On/Off Button
Power On/Off Button
LED On/Off Button
WPS Button
Reset Button
SECURITY
WiFi Encryption
WPA
WPA2
WPA3
WPA/WPA2-Enterprise (802.1x)
Network Security
SPI Firewall
Access Control
IP & MAC Binding
Application Layer Gateway
HomeShield Security
Real-Time IoT Protection
Malicious Site Blocker
Intrusion Prevention System
DDoS Attack Prevention
Home Network Scanner
Guest Network
1× 5 GHz Guest Network
1× 2.4 GHz Guest Network
VPN Server
OpenVPN
PPTP
SOFTWARE
Protocols
IPv4
IPv6
OneMesh™
WAN Types
Dynamic IP
Static IP
PPPoE
PPTP
L2TP
Package Contents
Wi-Fi Router AX73/ AX72
Power Adapter
RJ45 Ethernet Cable
Quick Installation Guide
System Requirements
Internet Explorer 11+, Firefox 12.0+, Chrome 20.0+, Safari 4.0
