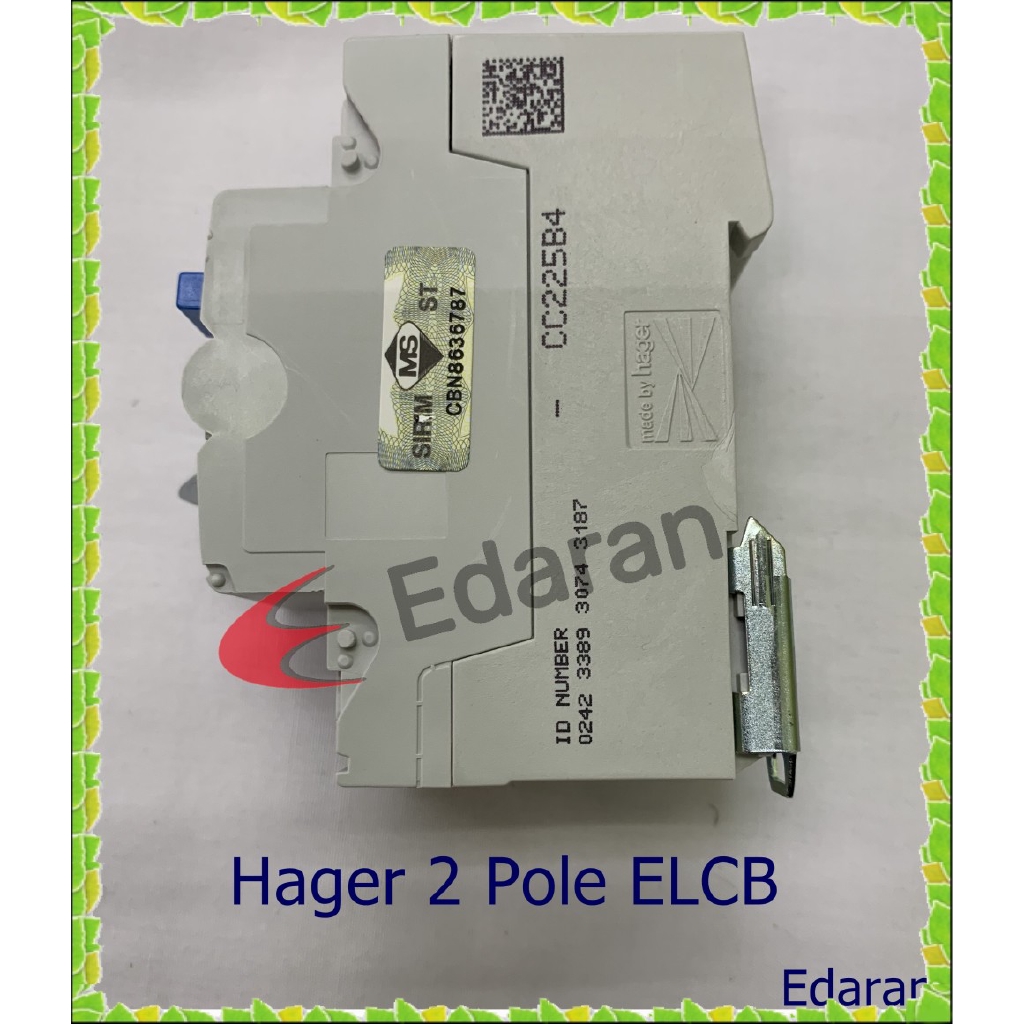

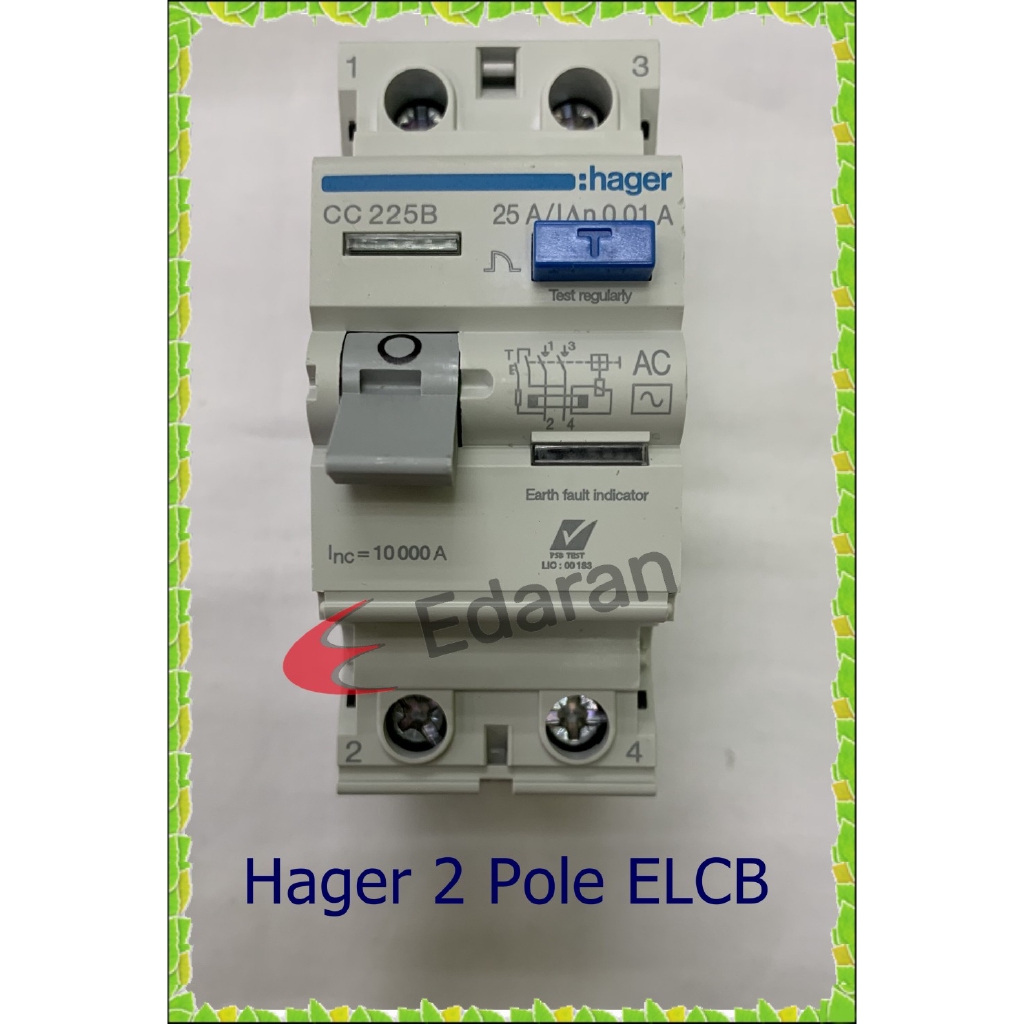

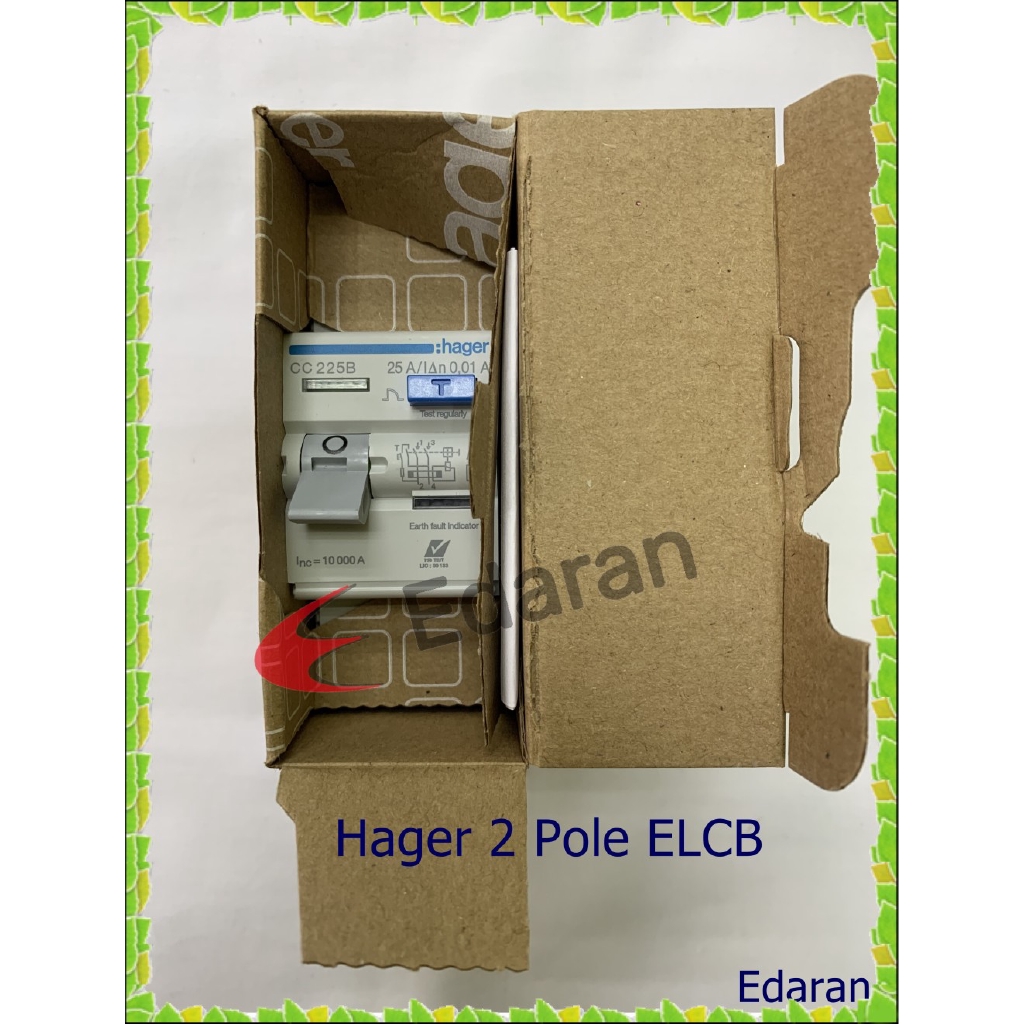

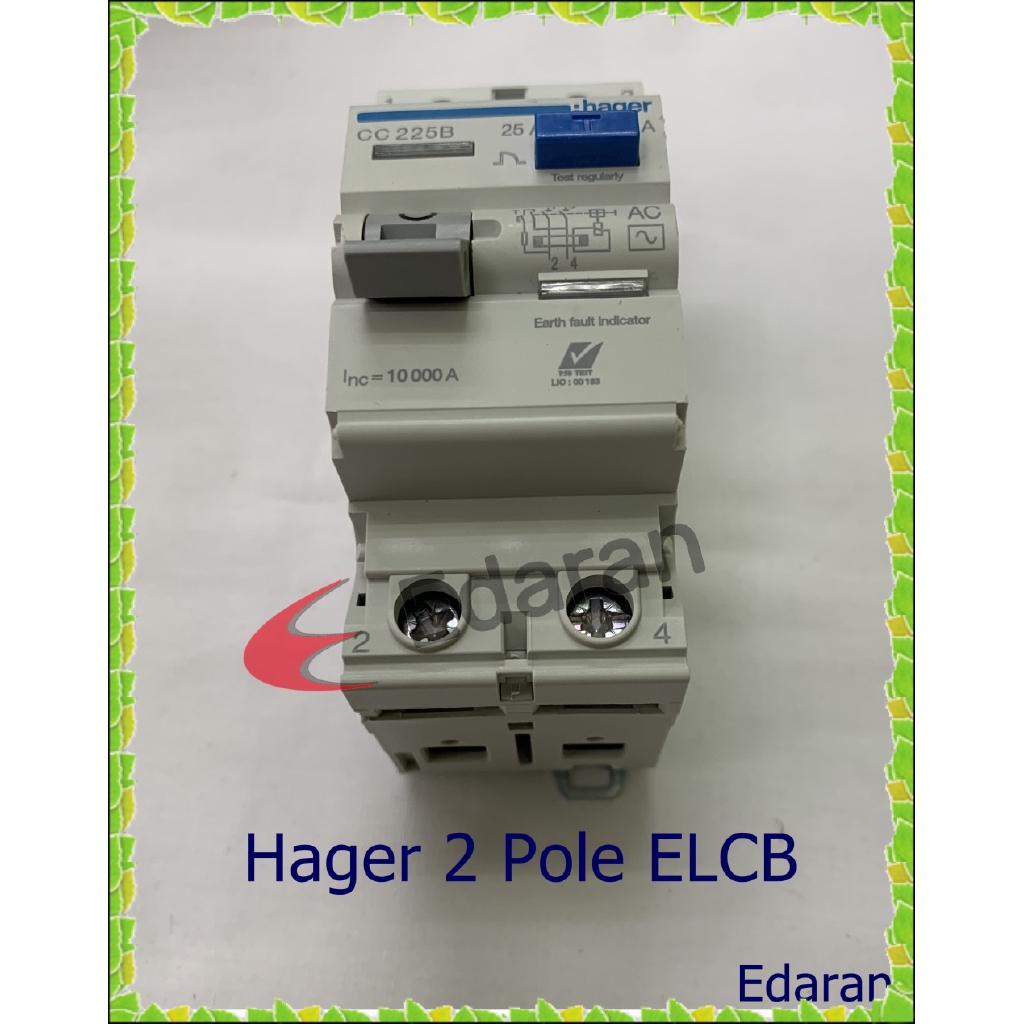

HAGER CC225B 2 Pole ELCB / RCCB 25A 10mA (SIRIM Approve) Description : - To open a circuit automatically in the case of an earth leakage fault between phase and earth and / or neutral greater or equal to 10, 30, 100, 300 or 500mA; use in domestic, commercial and industrial installations. PRODUCT OVERVIEW Product ID : Hager-CD Model : CC225B Brand : HAGER Class : Residual current circuit breaker (RCCB) Unit of Measure : PCS SPECIFICATIONS Number of poles : 2 Rated current : 25 A Rated fault current : 10mA Technical data : - nominal voltage : 2 pole 110/230V - 50Hz 4 pole 230/400V - 50Hz specifications : IEC 61008-1 SS97 Connection capacity : - 16-63A rigid 25▫ flexible 16▫ - 80-100A rigid 50▫ flexible 35▫ - Ambient temperature range : -5 to +40°C Positive contact indication : - Mechanical indicator, appearing on the front face of the RCCB, linked to the contacts shows the positive opening of all poles, red = contacts closed green = contacts open Earth fault indicator : - Mechanical indicator appearing on the front face of the RCCB to differenciate between tripping and off position yellow - tripped Nuisance tripping : - All the RCCBs are protected against transient voltages (lightning, line disturbances) and transient currents (from high capacitive circuits). DC sensitive RCCBs or time delay devices are available, please consult us. - You also have the possibility to install the following accessories : electrical auxiliaries terminal cover kit locking kit
