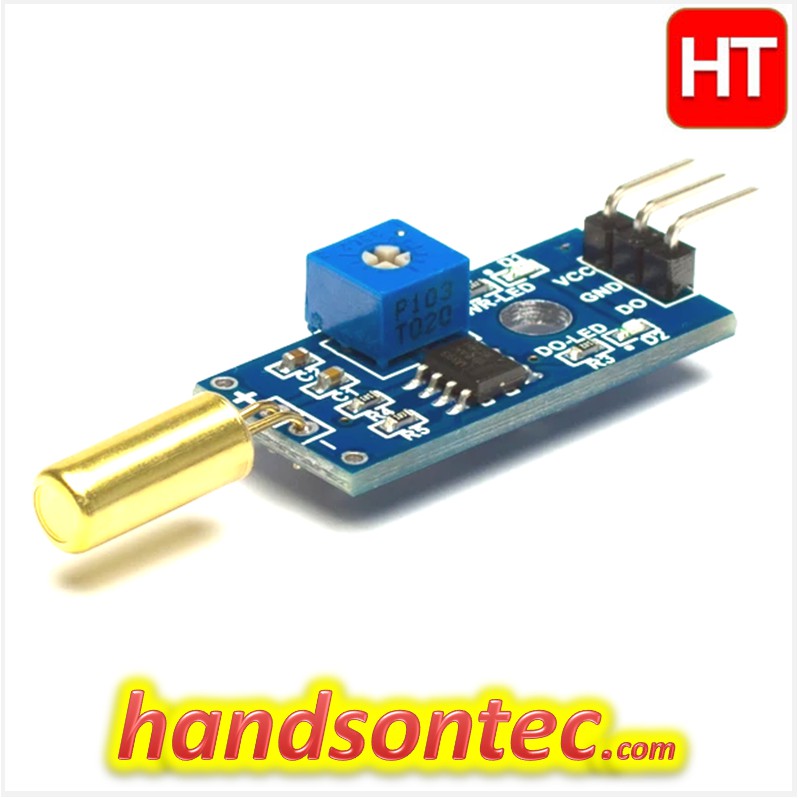

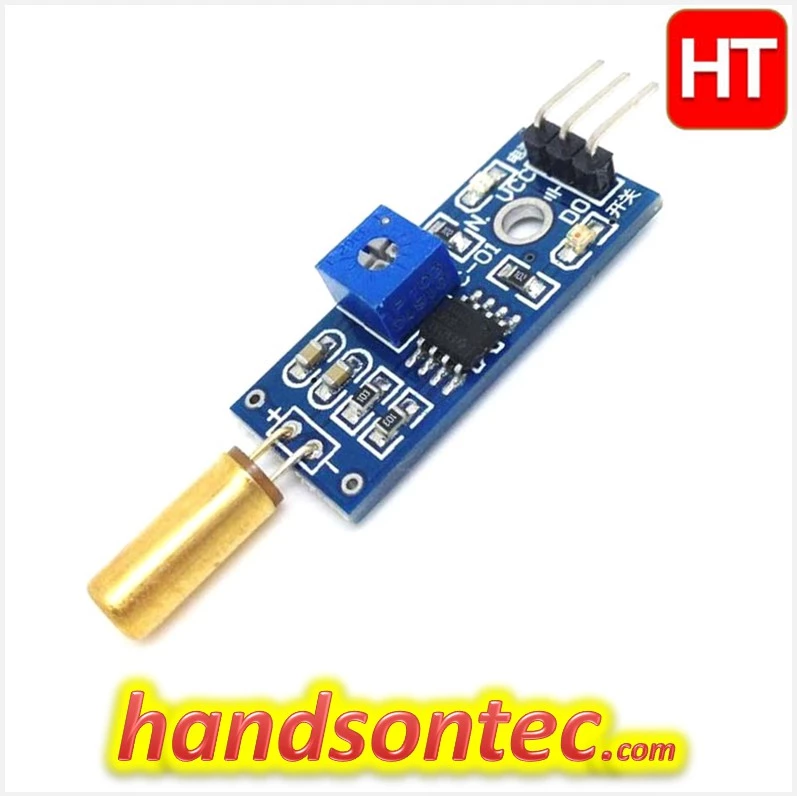

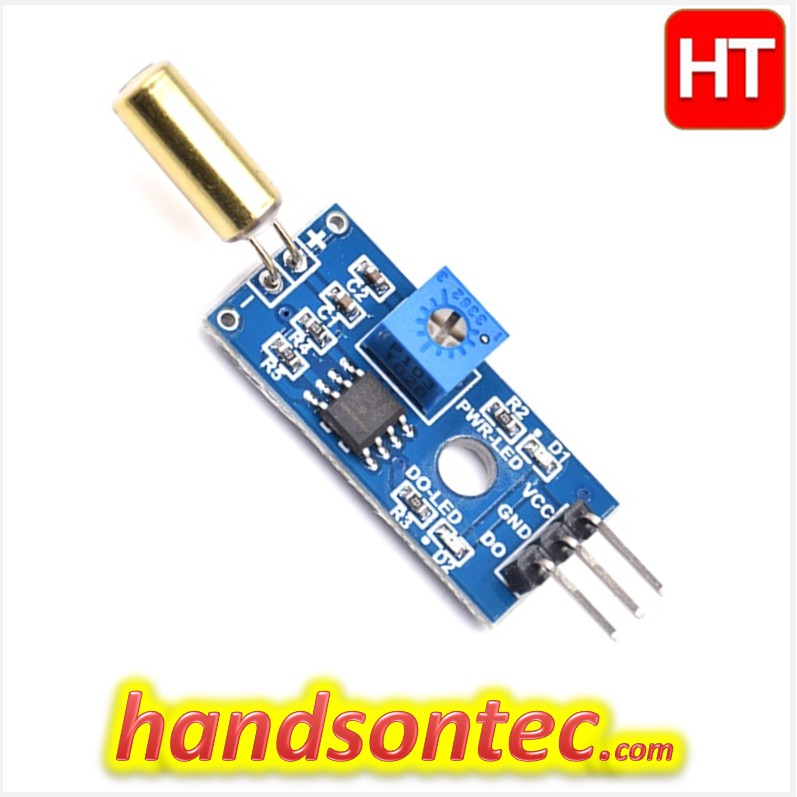

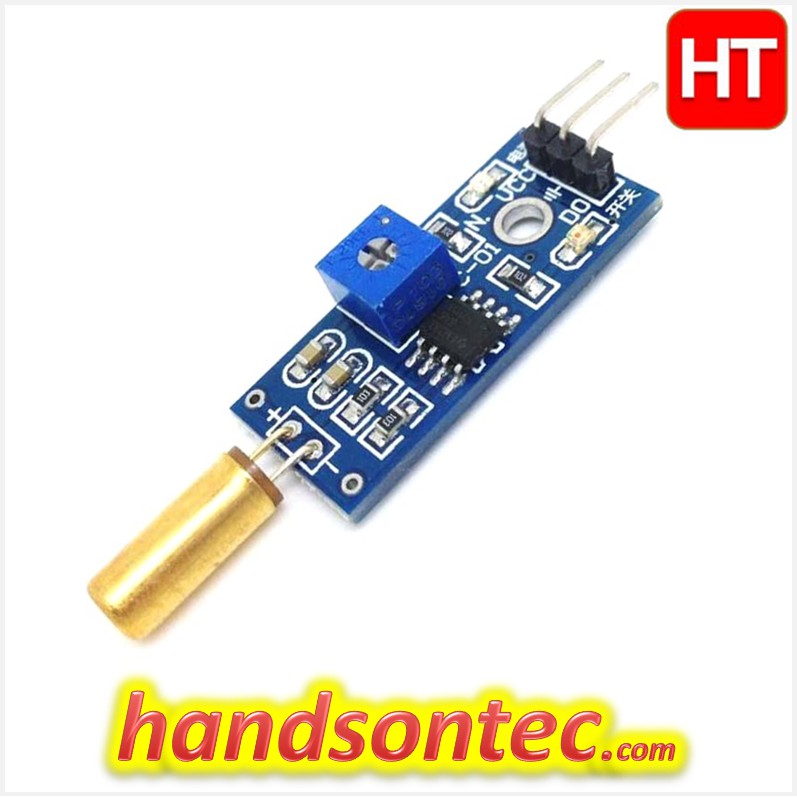

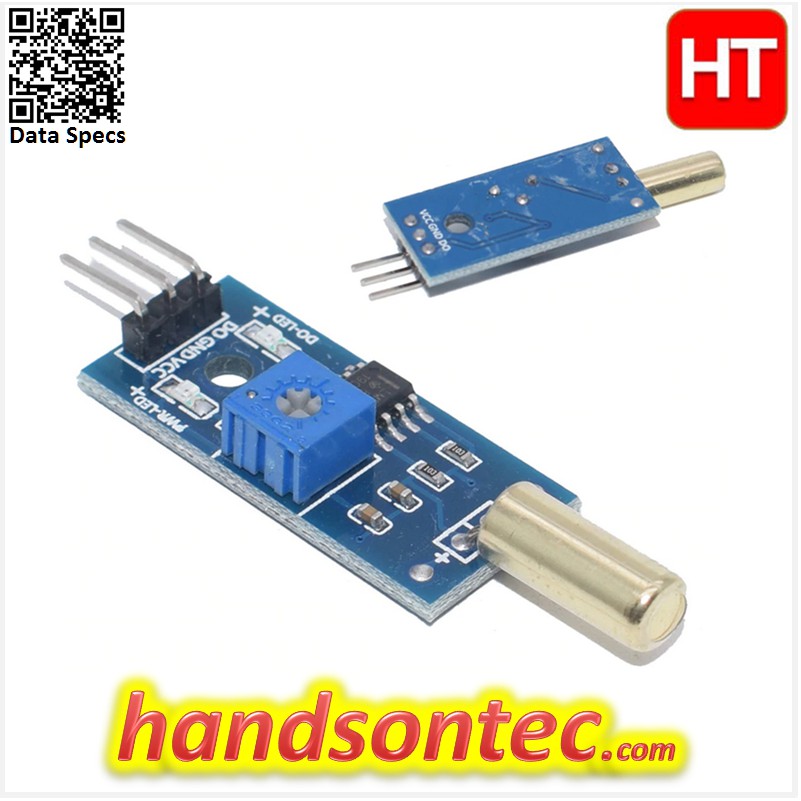

SW520D Tilt/Vibration Sensor Module.

TILT SENSOR MODULE is a device used for knowing the planar movement. Their function is to detect the plane shift from horizontal to vertical and sent of a signal when it happens. SW520D is simple contact type TILT SENSOR module.

Pack of 1-piece/lot.

Brief Data:

- Model No: SW520D.

- Supply voltage: 3.3 V to 5V

- Sensitivity Adjustment: Potentiometer.

- Detect orientation or inclination.

- TTL level output.

- Current Rating: 15mA.

- Can work on low voltages.

- Operating temperature: 0°C~+80°C.

- Board Dimension: (31×14)mm.

Image is for package illustration purpose only. Refer to product specs for detail.
