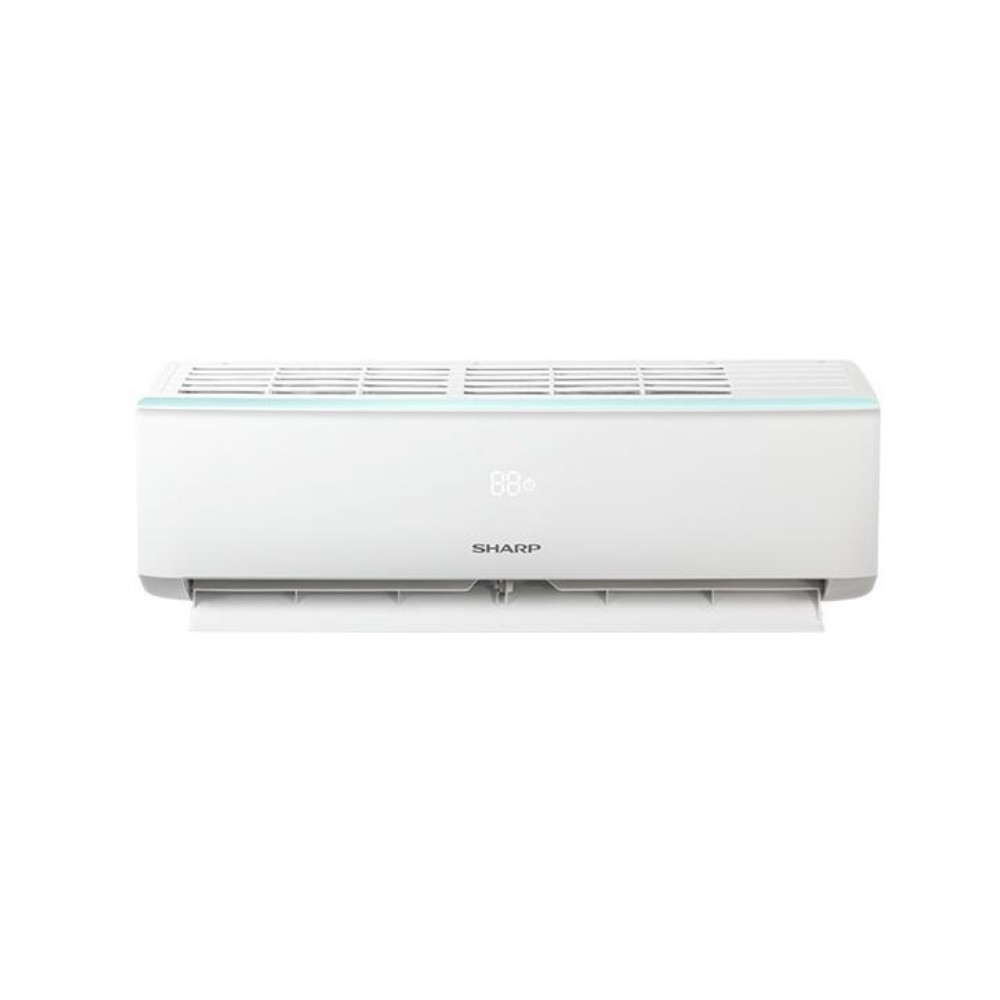

MODEL : SHARP AHA9WCD
1.0HP
R32 Refrigerant
Quiet Operation
Self-Cleaning
Auto & 3-Step Fan speed Setting
LCD Wireless Remote Control
12-Hour On/Off TImer
Dual Drain Setting
Cooling Capacity (BTU) 9,210
Power Input (W) 843
Running Current (A) 3.9
EER (BTU/W) -
COP -
Star Rank 3
Power Supply (V-Hz) 220V, 50Hz
Air Volume (m3/min) 9.9
Noise Level dB(A) -
Dimension (mm) - Indoor (W×H×D) 805 x 285 x 194
Dimension (mm) - Outdoor (W×H×D) 681 x 434 x 285
Net Weight (kg) - Indoor 8.1
Net Weight (kg) - Outdoor 24
Refrigerant R32
Pipe Diameter (inch) 1/4, 3/8
Warranty 1 year for general ,5 year for compressor
Pipe Length (Min-Max) (m) 20
Maximum Chargeless Length (m) 8
Maximum Height Difference (m) -
Outdoor Unit AUA9WCD
Features (-)
Powerful Jet Mode -
Super Jet Mode -
Turbo Mode -
W Flex Louver -
Dragonfly Fan -
Lock-On Sensor -
14m Long Airflow -
Coanda Airflow System -
Inverter-Controlled Operation -
ECO Mode -
Multi-Channel Heat Exchanger -
130V Operation -
Plasmacluster Ions -
0.5°C Setting -
15-Step Control -
Comfort Mode -
Baby Mode -
Quiet Operation Yes
Best Sleep Mode -
Breeze Mode -
Self-Diagnosis -
Self-Cleaning Yes
14°C Temperature Setting -
LED Display -
Computerized Dry Mode Operation -
Auto Operation Mode -
Auto & 3-Step Fan Speed Setting Yes
Auto & 4-Step Fan Speed Setting -
Micro-Computer Control -
LCD Wireless Remote Control Yes
12-Hour On/Off Timer Yes
Awakening Function -
4-Way Auto Air Swing -
Auto Swing Louver -
Anti-Mold Anti-Bacteria Mesh Filter -
Dual Drain Setting Yes
------------------------------------------------------------------------------------------------------------------------------------------------------------------------------
MODEL : SHARP AHA9XCD
Specification (-)
Cooling Capacity (BTU) 9281
Power Input (W) 844
Running Current (A) 3.8
CSPF (Wh/Wh) 3.77
Star Rank 3
Annual energy consumption (kWh) 1,356
Power Supply (V-Hz) 220-240V 50Hz
Air Volume (m3/min) 9.2
Noise Level dB(A) -
Dimension (mm) - Indoor (W×H×D) 773 × 250 × 185
Dimension (mm) - Outdoor (W×H×D) 782 × 540 × 320
Net Weight (kg) - Indoor 8.5
Net Weight (kg) - Outdoor 27
Refrigerant R32
Pipe Diameter (inch) 1/4"
Pipe Length (Min-Max) (m) 5
Maximum Chargeless Length (m) 5
Maximum Height Difference (m) 7
Outdoor Unit AUA9XCD
Features (-)
AIoT -
Plasmacluster Ions -
Super Jet Mode -
Turbo Mode -
14m Long Airflow -
15m Long Airflow -
Motion Sensor -
130V Operation -
14°C Temperature Setting -
4-Way Auto Air Swing -
ECO Mode -
Baby Mode -
Quiet Operation Yes
Sleep Mode Yes
Breeze Mode -
Self-Cleaning -
12-Hour On/Off Timer -
24-Hour On/Off Timer Yes
Auto Restart -
Dual Drain Setting Yes
