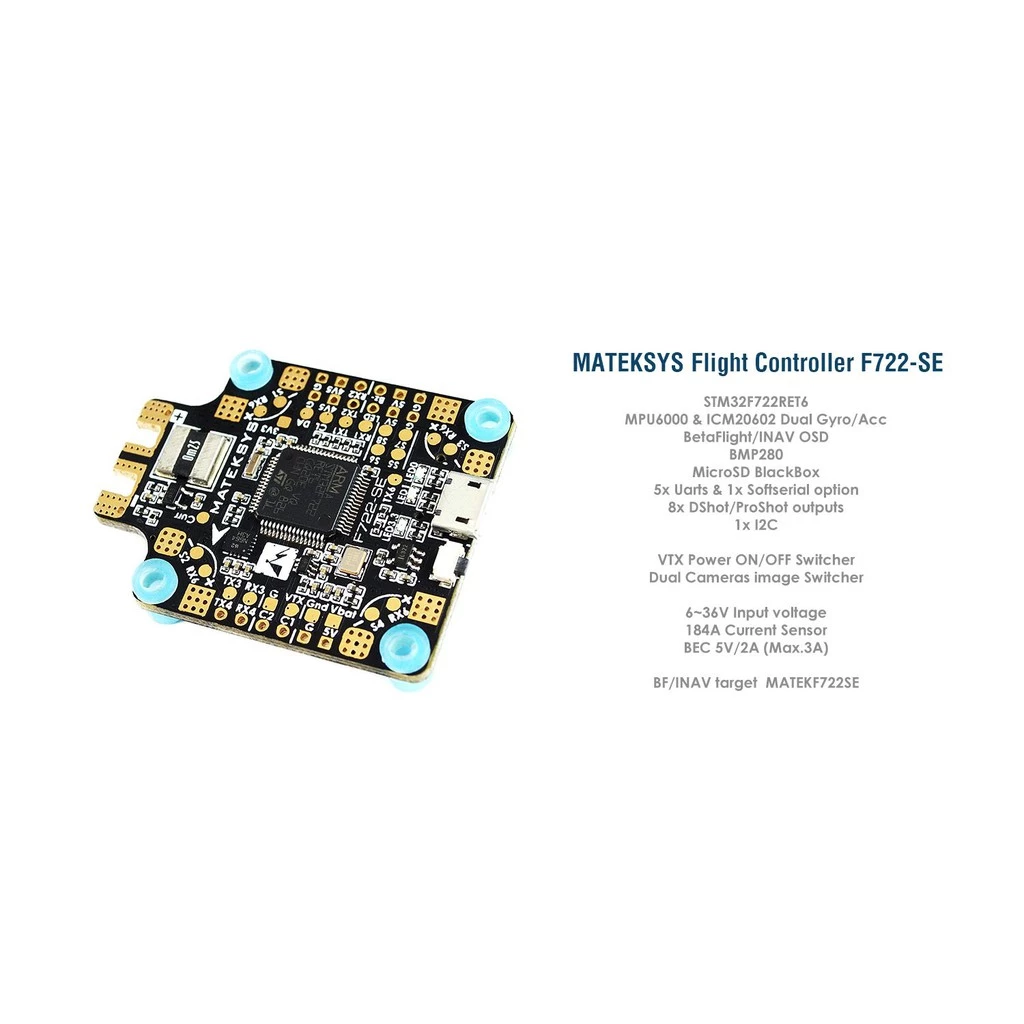

Matek System F722-SE F7 Dual Gryo Flight Controller w/ OSD BEC Current Sensor for RC Drone Specifications Brand Name: Matek System Model: F722-SE Item Name: F7 Dual Gyro / ACC Flight Controller Board MCU: 216MHz STM32F722RET6 IMU: MPU6000 & ICM20602, Dual Gyros built-in (SPI) Baro: BMP280 (I2C) OSD: AT7456E (SPI) Blackbox: MicroSD card slot (SPI) 5x Uarts (1,2,3,4,6) with build-in inversion 1x Softserial supported 8x Dshot/Proshot/oneshot outputs 1x I2C 4x RX6 pad(one per cornet) for BLheli32 ESC telemetry 4x individual ESC power/signal pads 1x Group of G/S1/S2/S3/S4 pads for 4in1 ESC Signal/GND 3x LEDs for FC STATUS (Blue, Green) and 3.3V indicator(Red) Vbat filtered output power for VTX, Switchable via AUX (modes tab-user1) Dual Camera image switchable via AUX (modes tab-user2) Camera control: Yes Smartaudio & Tramp VTX protocol: Yes WS2812 Led Strip : Yes Beeper : Yes RSSI: Yes Additional ADC for INAV analog airspeed PDB Specifications Input: 6~36V (3~8S LiPo) w/TVS protection PDB: 4x35A (Max.4x46A) BEC: 5V 2A cont. (Max.3A) LDO 3.3V: Max.200mA Current Sensor 184A (Scale 179) Battery Voltage Sensor: 1:10 (Scale 110) FC Firmware BetaFlight / INAV Target: MATEKF722SE Physical Mounting: 30.5 x 30.5mm, Φ4mm with Grommets Φ3mm Dimensions: 36 x 46 mm Weight: 10g Package Included: 1 x FC F722-SE 6 x silicon grommets M4 to M3 1 x FR4 PCB Plate 36*36*1mm 1 x Rubycon ZLH 35V/470uF (Low ESR)
