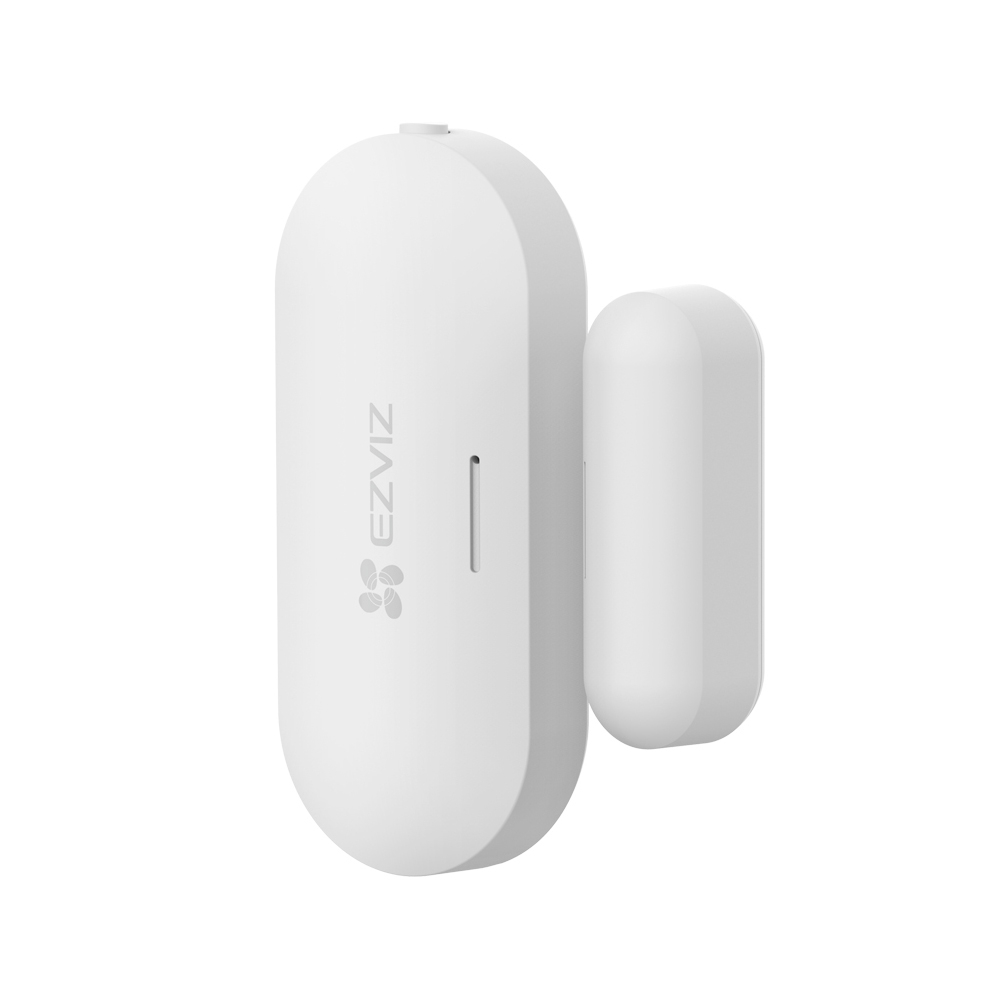

Ezviz T2C Open/Close Sensor Requires using with the EZVIZ Home Gateway A3¹

PACKAGE:

1 x T2C Open/Close Sensor

1 x Doubled-sided Tape Strip(s)

1 x Regulatory Information

1 x Quick Start Guide

SPECIAL NOTE:

1 The gateway is not included in the purchase of the sensor. The sensor only works in conjunction with the EZVIZ Sensor Kit.

2 The T2C Open/Close Sensor must first connect to the gateway to link with EZVIZ cameras. The sensor can only work with EZVIZ wired cameras that are launched with version 5.3.4 or later firmware. Please contact the EZVIZ support team to confirm camera compatibility.

3 The current version only allows the C6 Smart Camera to auto-track activities upon sensor detection. Other pan/tilt cameras will only record at its original fixed viewing angle when the sensor detects an activity. The sensor-triggered auto-tracking feature is under development and will likely to be available on most EZVIZ indoor PT cameras in 2022

4 Data from EZVIZ lab test results, based on a usage of 30 opening/closing actions per day. May vary due to activity frequency and other environmental factors.

FEATURES:

==A sensor that checks the doors and windows for you==

Doors, windows, pet gates – forget about having to check and re-check if they’re open or shut. Install the T2C Open/Close Sensor anywhere you need it, and check on your home in real time. If anyone forcibly breaks in, you will hear a loud alarm and receive a mobile alert right on your smartphone. Enjoy the assurance that comes with a protected home.

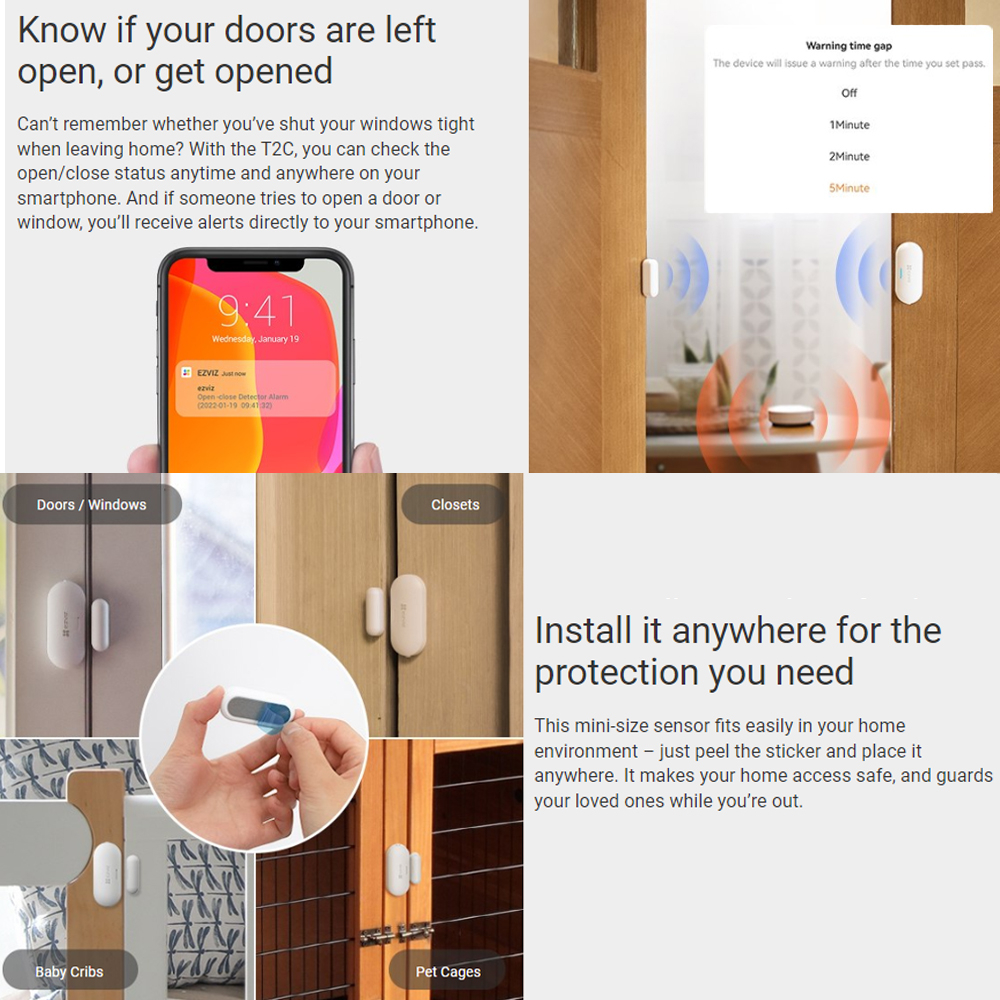

==Know if your doors are left open, or get opened==

Can’t remember whether you’ve shut your windows tight when leaving home? With the T2C, you can check the open/close status anytime and anywhere on your smartphone. And if someone tries to open a door or window, you’ll receive alerts directly to your smartphone.

==Install it anywhere for the protection you need==

This mini-size sensor fits easily in your home environment – just peel the sticker and place it anywhere. It makes your home access safe, and guards your loved ones while you’re out.

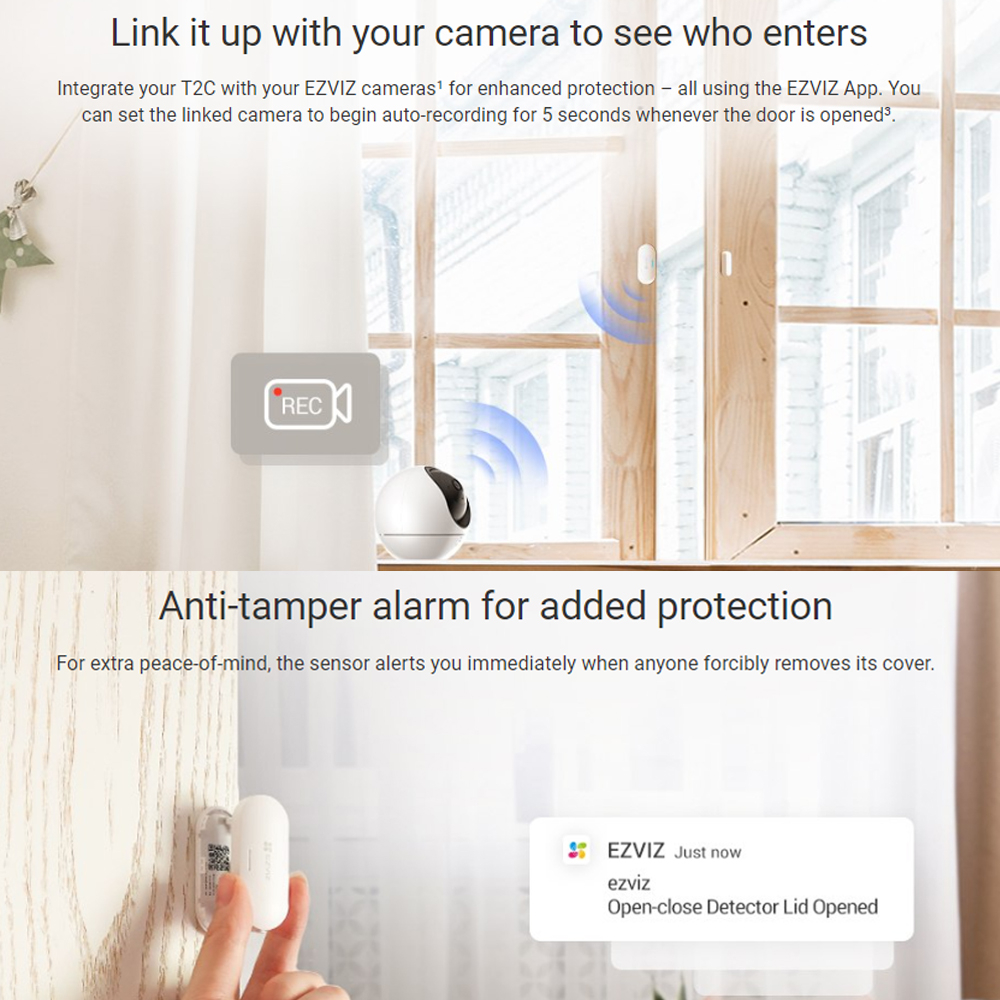

==Link it up with your camera to see who enters==

Integrate your T2C with your EZVIZ cameras¹ for enhanced protection – all using the EZVIZ App. You can set the linked camera to begin auto-recording for 5 seconds whenever the door is opened³.

==Anti-tamper alarm for added protection==

For extra peace-of-mind, the sensor alerts you immediately when anyone forcibly removes its cover.

==Long-lasting performance you can trust==

The T2C is designed with high energy efficiency, operating for up to 2 years⁴ with the included battery cell. Enjoy the reliability and reduced energy costs with the T2C.

==Expand your EZVIZ alarm system==

The open/close sensor can be conveniently added to your EZVIZ sensor system for expanded protection. You can manage and arm the system using the free mobile app from EZVIZ.

SPECIFICATIONS:

Brand: Ezviz

Model: T2C

Operation Conditions: -10 °C to 55 °C (14 °F to 131 °F), humidity 95% or less (non-condensing)

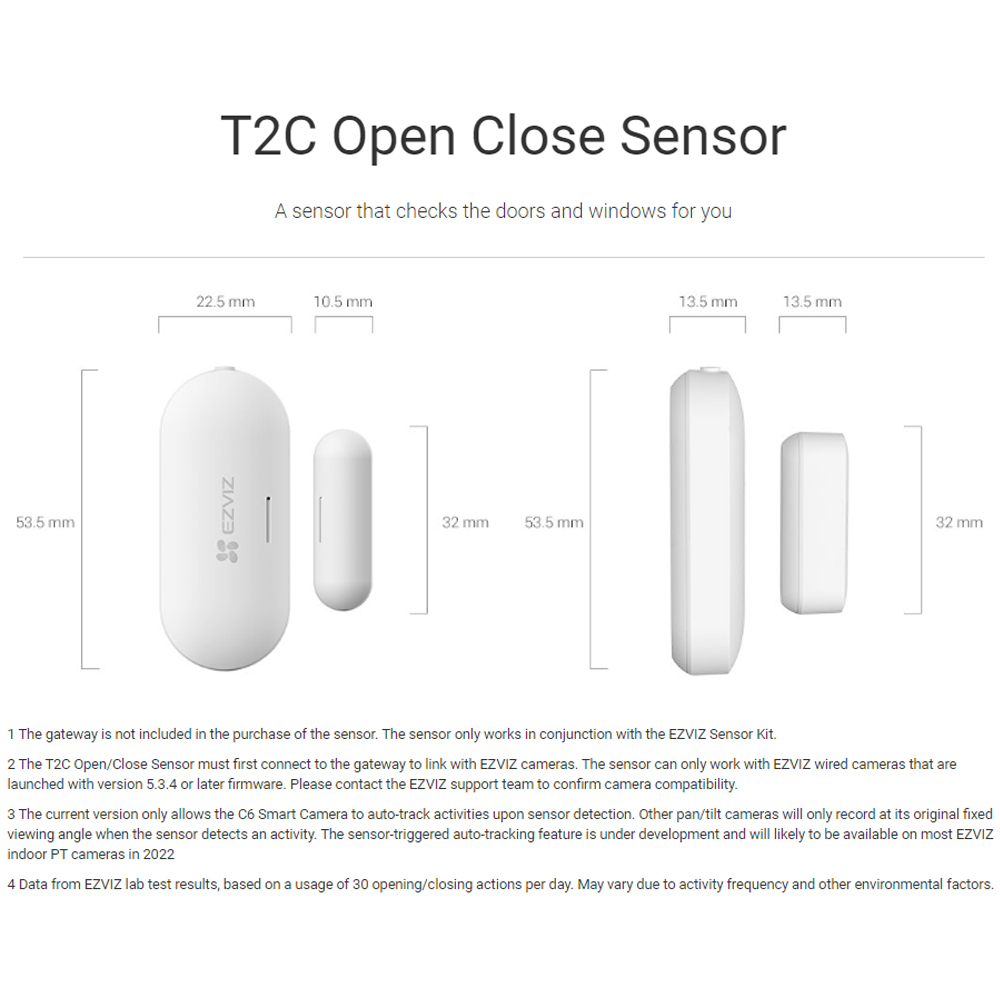

Dimensions: Main body: 53.5 × 22.5 × 13.5 mm (2.1 × 0.9 × 0.5 inch) Magnet: 32.0 × 10.5 × 13.5 mm (1.2 × 0.4 × 0.5 inch)

Package Size: 92 × 52 × 93 mm (3.6 × 2.0 × 3.7 inch)

Weight: 80 g (2.8 oz) with package

Detection Type: 80 g (2.8 oz) with package

Recommended Trigger Distance: Wooden door > 25 mm Iron door > 15 mm

Low Battery Reminder: Supports

Anti-Tamper Alarm: Supports

Installation Method: Adhesive back for peel-and-stick installation

Battery Type: Cell battery CR1632 × 2

Battery Life: Up to 2 years (Based on the usage of 30 detections per day)

Protocol: ZigBee 3.0

Communication Distance: < 200 m (Tested in open environment)

Certifications: CE / RoHS / REACH / WEEE / UKCA
