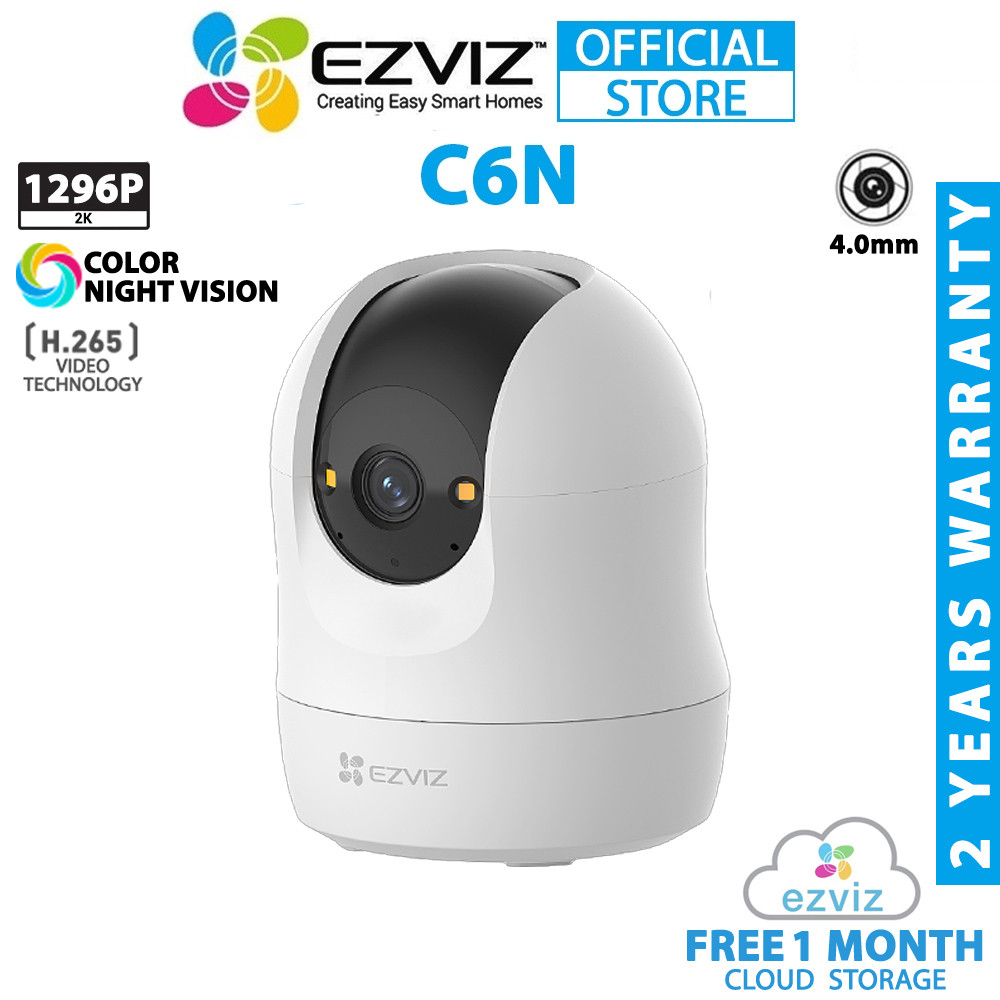

EZVIZ C6N 2MP / 4MP

PACKAGE:

1 x EZVIZ C6N Camera (2MP / 4MP OPTIONAL)

1 x Base

1 x Power Cable

1 x Power Adapter

1 x Drill Template

1 x Screw Kit

1 x Quick Start Guide

1 x Regulatory Information

SPECIFICATION: (EZVIZ C6N 2MP)

Brand: Ezviz

Model: C6N 2MP

Image Sensor: 1/4" Progressive Scan CMOS

Lens: 4mm@ F2.4, view angle: 85° diagonal, 75° horizontal, 45° vertical

Video Compression: H.264

Max. Resolution: 1920 × 1080

Smart Alarm: Motion detection

Wi-Fi Pairing: AP Pairing

Storage: MicroSD card slot Max. 256 GB (Optional)

Power: Micro USB

Wired Network: RJ45 X 1 (10M/100M self-adaptive Ethernet port)

Standard: IEEE802.11 b/g/n

IR Range: MAX. 10m

Dimensions: 88 × 88.2 × 119 mm (3.46 × 3.47 × 4.69 inch)

SPECIFICATION: (EZVIZ C6N 4MP)

Brand: Ezviz

Model: C6N 4MP

Image sensor: F2.2@1/3" Progressive Scan CMOS

Shutter Speed: Self-adaptive shutter

Lens: 4mm, view angle: 124°(Diagonal), 85° (Horizontal), 55°(Vertical)

Lens Mount: M12

Day & Night: IR-cut filter with auto-switching

DNR: 3D DNR

WDR: Digital WDR

Video Compression: H.265 / H.264

Video Bit Rate: Adaptive bit rate.

Max. Resolution: 2560 × 1440

Frame Rate: Max. 20 fps; Self-Adaptive during network transmission

Smart Alarm: Motion detection

Wi-Fi Pairing: AP pairing

Protocol: EZVIZ cloud proprietary protocol

Interface Protocol: EZVIZ cloud proprietary protocol

Frequency Range: 2.4 GHz ~ 2.4835 GHz

Operating Conditions: -10°C to 45°C (14°F to 113 °F ), Humidity 95% or less (non-condensing)

Power Supply: DC 5V/2A

Power Consumption: Max. 5W

IR Range: Max. 10 m (32.81 ft)

Dimensions: 88 × 88.2 × 119 mm (3.46 × 3.47 × 4.69 inch)

===================================================================================================

Ezviz C6 2K⁺ Smart Home Camera

PACKAGE:

1 x EZVIZ C6 2K+ Camera

1 x Base

1 x Power Cable

1 x Power Adapter

1 x Drill Template

1 x Screw Kit

1 x Quick Start Guide

1 x Regulatory Information

SPECIFICATIONS:

Brand: Ezviz

Model: C6 2K⁺

Image Sensor: 1/3" Progressive Scan CMOS

Shutter Speed: Self-adaptive shutter

Lens: 4 mm @ F1.6, viewing angle: 79° (Horizontal), 42° (Vertical), 92°(Diagonal)

PT Angle: Pan: 353° , Tilt: 133°

Minimum Illumination: 0.1 Lux @ (F1.6, AGC ON), 0 Lux with IR

Lens Mount: M12

Day & Night: IR-cut filter with auto-switching

DNR: 3D DNR

3D DNR: WDR 80dB

BLC: Supports

Night Vision: 10 m

Max. Resolution: 2560 × 1440

Frame Rate: Max.25fps; Self-Adaptive during network transmission

Video Compression: H.265 / H.264

Video Bit Rate: Ultra-HD; HD; Standard. Adaptive bit rate

Audio Bit Rate: Self-Adaptive

Max. Bitrate: 4Mbps

Wi-Fi Standard: IEEE802.11a, 802.11b, 802.11g, 802.11n, 802.11ac

Frequency Range: 2.4G:2400~2483.5MHz; 5G: 5170~5250MHz,5735 - 5835MHz

Wi-Fi Pairing: AP pairing

Local Storage: MicroSD card slot (Max. 256 GB)

Cloud Storage: EZVIZ Cloud Storage

Smart Alarm: AI-Powered Human Shape Detection / Pet Detection / Waving-Hand Detection / Voice Activity Detection

Customized Alert Area: Supports

Two-Way Talk: Supports (Dual-Mic)

General Function: Anti-Flicker, Dual-Stream, Heart Beat, Mirror Image, Password Protection, Watermark

Power Supply: DC 5V/2A

Power Consumption: Max. 8W

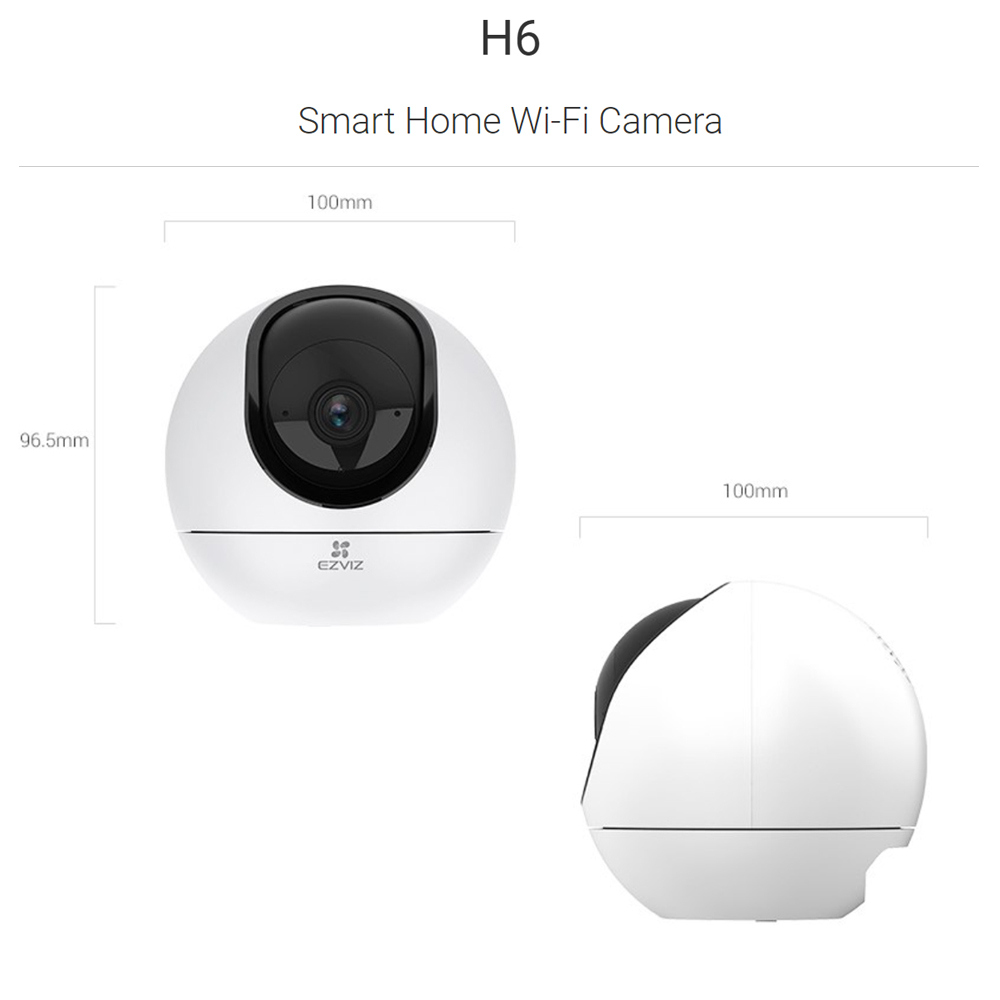

Product Dimensions: 100 × 100 × 96.5 mm(3.93 × 3.93 × 3.80 inch)

Certifications: CE / FCC / UKCA / UL / WEEE / RoHS / REACH

===================================================================================================

Ezviz H6 3K Smart Home Wi-Fi Camera

PACKAGE:

1 x H6 Camera

1 x Base

1 x Power Cable

1 x Power Adapter

1 x Drill Template

1 x Screw Kit

1 x Quick Start Guide

1 x Regulatory Information

SPECIFICATIONS:

Brand: Ezviz

Model: H6

Image Sensor: 1/2.7" Progressive Scan CMOS

Shutter Speed: Self-adaptive shutter

Lens: 4mm@ F1.6, view angle:104° (Horizontal), 87° (Vertical), 53°(Diagonal)

PT Angle: Pan: 353° , Tilt: 133°

Minimum Illumination: 0.51Lux @(F1.6, AGC ON), 0 Lux with IR

Lens Mount: M12

Day & Night: IR-cut filter with auto-switching

DNR: 3D DNR

WDR: Digital WDR

BLC: Supports

Night Vision: 10m

Max. Resolution: 2880 × 1620

Frame Rate: Max:25fps; Self-Adaptive during network transmission

Video Compression: H.265 / H.264

Video Bit Rate: Ultra-HD; HD; Standard. Adaptive bit rate.

Audio Bit Rate: Self-Adaptive

Max. Bitrate: 4 Mbps

Wi-Fi Standard: IEEE802.11a, 802.11b, 802.11g, 802.11n, 802.11ac

Frequency Range: 2.4G: 2400~2483.5 MHz 5G: 5170~5250 MHz，5735~5835 MHz

Channel Bandwidth: Supports 40 MHz

Wi-Fi Pairing: AP pairing

Wired Network: RJ45 × 1 (10M / 100M Adaptive Ethernet Port)

Local Storage: Micro SD card slot (Max. 512G)

Cloud Storage: EZVIZ Cloud Storage

Two-Way Talk: Supports ( Double Mic )

Power Supply: DC 5V/2A（Type-C)

Power Consumption: Max. 8W

Product Dimensions: 115.5 × 116 × 160 mm (4.55 × 4.57 × 6.30 inch)

Certifications: CE / UKCA / UL / WEEE / RoHS / REACH

** Ezviz CCTV 2 Years Warranty Provided (only exclusive in this official store) **
