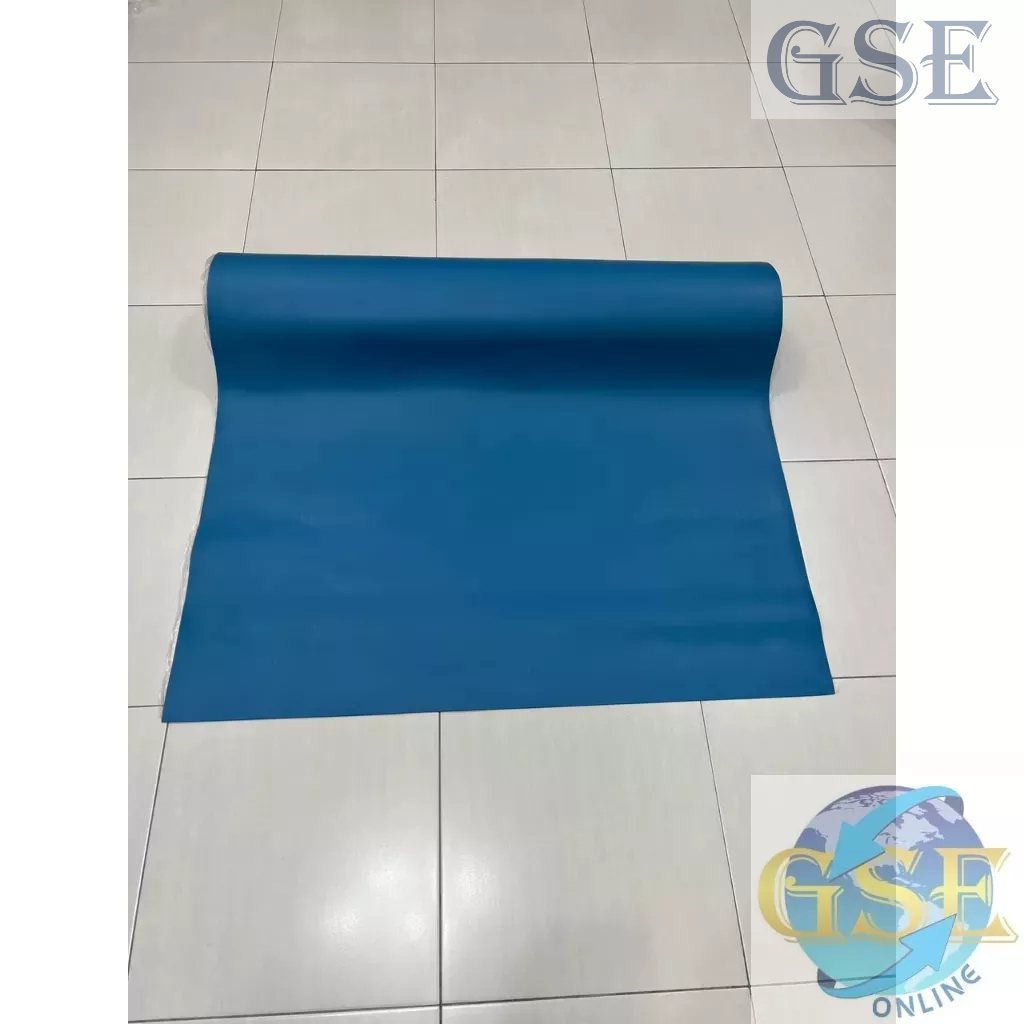

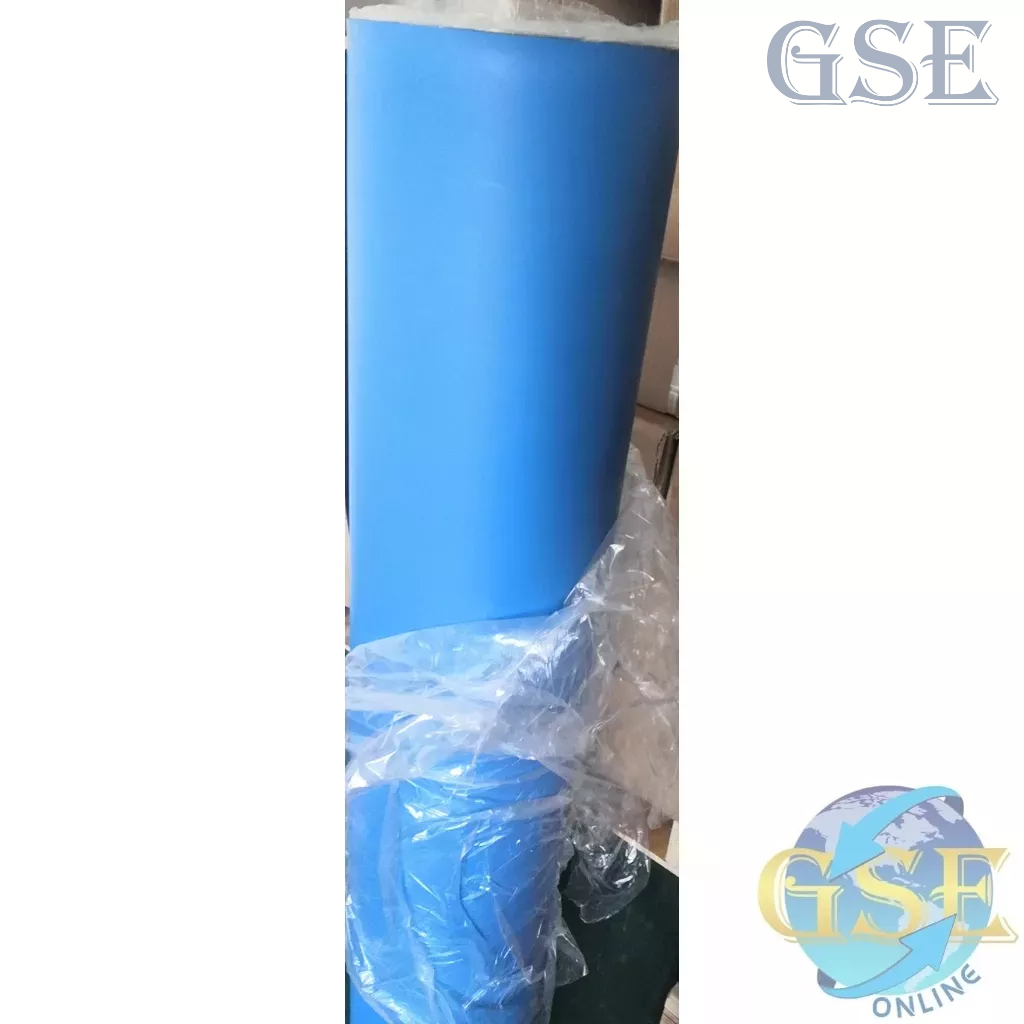

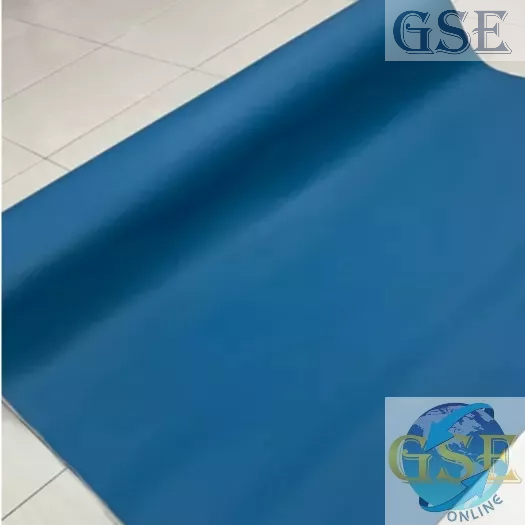

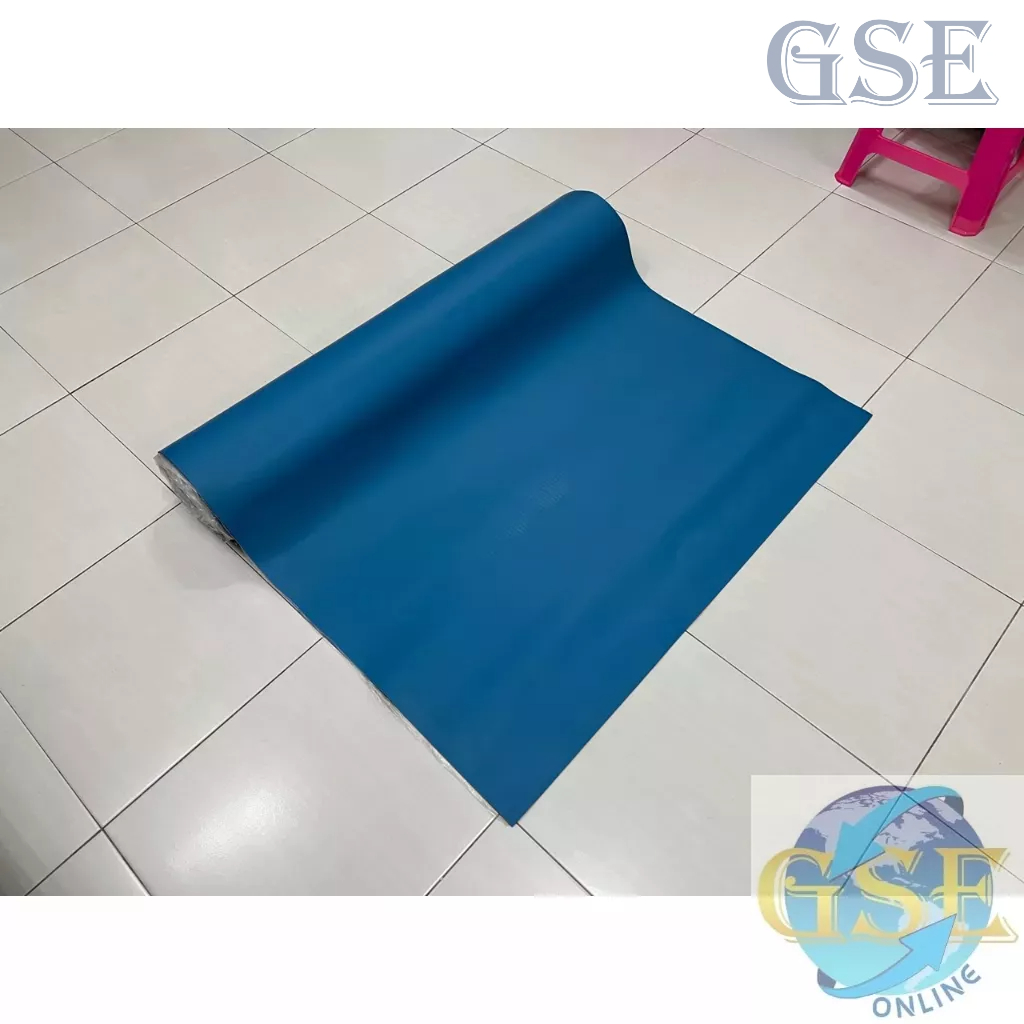

RoHS 1 ESD TABLE MATS Specifications:- 2mm ( Thickness ) x 1,000mm ( 1m) ( Width ) x 10,000mm ( 10m ) ( length ) / roll , weight around 30kgs / roll COLOUR DISCLAIMER. Please note actual colours may vary. It’s important to note that they may look slightly different on a natural product than what you see on your computer monitor. WHY DO WE NEED ANTI - STATIC PROTECTION? WHY SHOULD WE BE CONCERNED ABOUT THE IMPACT OF ELECTROSTATIC DISCHARGE? WHY ANTI-STATIC CARPETING FOR YOUR FACILITY? REASON IS TO PREVENT TRIBOELECTRIC DAMAGING OUR MACHINES/EQUIPMENT/ELECTRONIC PARTS etc A) Product Name ESD Rubber Mat B) Raw Material NBR + Synthetic Rubber C) Purpose To prevent equipment damage resulting from the triboelectric voltage of the static dissipative D) Scope Ideal for use in Workstations, Electronic Manufacturing, Pharmaceutical Plants, Cleanrooms, Fiber Optics, Electronic Assembly, Electronic Warehousing, Circuit Assembly, Aerospace, CMOS chips, microprocessor, semiconductor, dish drivers, composites, LCD screen products, circuit product lines, hospitals and Pharmaceutical industries, precision instrument etc. E) Characteristics 1 ) The anti-static mat is made up of two layers; the top layer ( hard ) is static dissipative, and the bottom layer ( soft ) is conductive. 2) Features:- The anti-static properties of mat are according to the relative requirements of SJ/T 10694-1996. The surface resistance of static dissipative layer ( 1.0 x 10e6 ~ 10e9 Ω ) ,The surface resistance of conductive layer ( Below 1.0 x 10e6 Ω ) ,Volume resistance ( 1.0 x 10e6 ~ 10e9 Ω ) , Surface triboelectric voltage of the static dissipative material < 200 V , The time of static discharging below 100V should be less than 1 second . 3) Part / Model No. : D for Dull ( Matt ) 4) Compliant to GB/T14437-97. 5) RoHS 1 compliant . ( SGS TESTED ) 6) Top Layer Material: Coloured ( NBR Rubber ), Bottom Layer Material : Black ( Synthetic Rubber ). 7) Surface Resistivity : a) Top ( 1.0 × 10 ⁷ ~ 1.0 × 10⁹ Ohms ) b) Bottom ( 1.0 × 10² ~ 1.0 × 10⁶ Ohms ) 8) Hardness ( IRHD, Micro Hardness Tester Wallace ) a) Top Coloured Layer: 70 ± 5° ( Shore A ), b) Bottom Black layer: 50 ± 5° ( Shore A ) 9) Overall Thickness: 2.00 mm F) Specifications 1) ~2mm ( Thickness ) x 1,000mm ( 1m) ( Width ) x 10,000mm ( 10m ) ( length ) / roll , weight around 30kgs / roll
