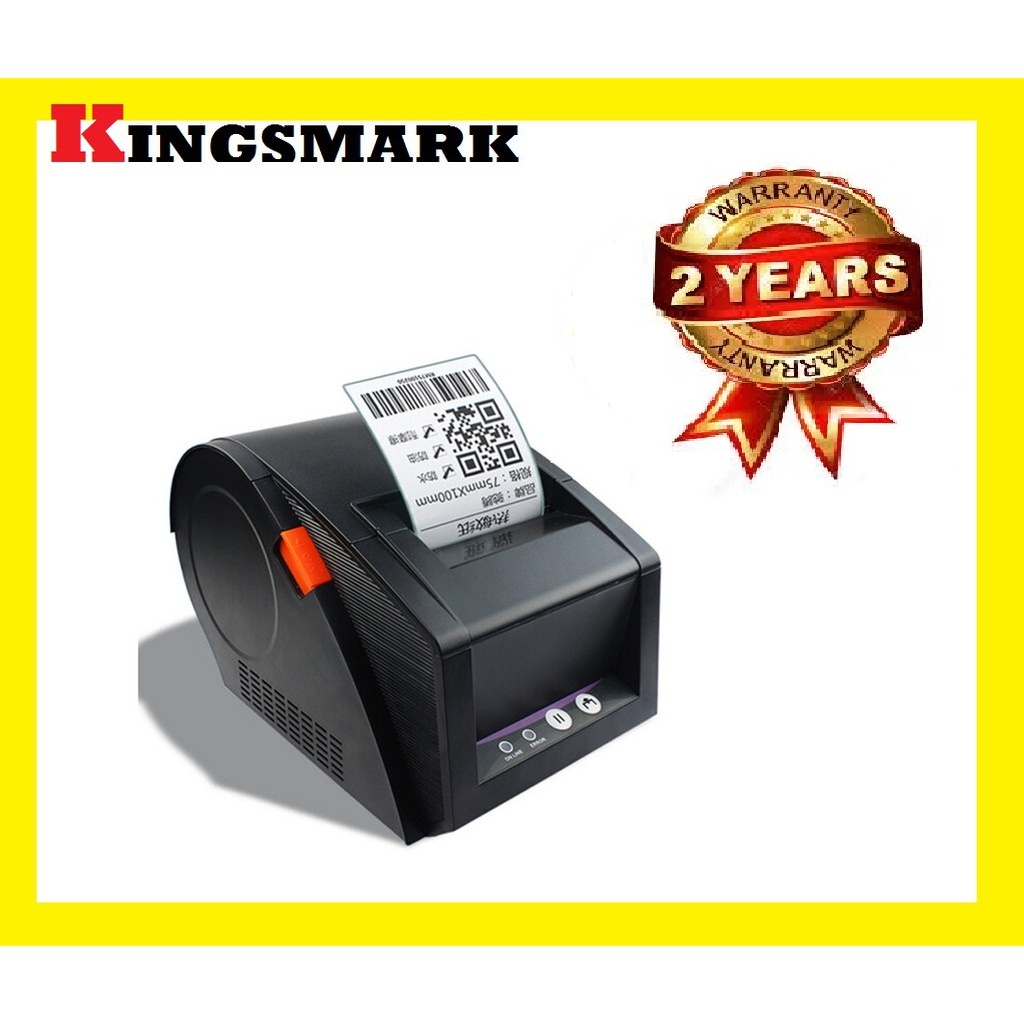

Product details of GPRINTER GP3120TU USB THERMAL BARCODE label PRINTER 80mm STICKER
Various label width, can be 23mm-80mm
Label paper auto detection
Temperature control function
Modularity design and meet with various applications
Product Advantages
1.Simple and easy to install paper, thermal printer,no need carbon belt.
2.Give barcode editing software (online transfer, provide video tutorials), compatible with the computer system of Window 7 / 8.1.
3.Resolution 203,printing speed127mm/s (fast).
4.Support various coding type print barcode coding system, support LOGO printing.
5.Can print continuously, sequence of bar code can be set to special change.
6.Repair rate is low, the quality stable and reliable.
7.Automatic paper location function
8. Built-in power supply. more safe and save space.
Features:
Simple and easy to install paper, thermal printer, no need carbon belt.
Resolution 203, printing speed 127mm/s (fast).
Use 23~80 mm label width
Support various coding type print barcode coding system, support LOGO printing.
Can print continuously, sequence of bar code can be set to special change.
Quality stable and reliable.
Automatic paper location function
Built-in power supply 100V ~ 240V -more safe and save space.
Specification:
Printing Printing method Thermal
Resolution 203dpi
Printing Width 20 - 82 mm
Printing speed 3 - 5inch/s
Interface Type USB
Storage DRAM:2MFLSH:2M
The print head temperature detection Thermistor
The print head position detection Micro Switch
Paper detection photoelectric sensor
Bar code character Bar Code CODE128/EAN128/ITF/CODE39/CODE93/EAN13/EAN13+2/
EAN13+5/EAN8/EAN8+2/EAN8+5/CODABA/POSTNET/
UPCA+2/UPCA+5/CPOST/MSI/MSIC/PLESSEY/ITF14/EAN14
character set Commonly used single-byte font: PONT 0 ~ PONR 8
Character amplification and rotation 1. The transverse and longitudinal can be magnified 1 ~ 10 times
2.Rotation printing 0-90/ 270/360 degree)
Figure Monochrome PCX, BMP file can be download to FLASH, DRAM
Medium Paper Type Thermal coil paper, sticker
Medium Width 23 - 82 mm
scroll MAX 100mm, MIN 25mm
Power input 24DC, 1.0A
Physical characteristics Weight 1.5 kg
Dimension 150 x 220 x 150 mm
Environmental elements Working Environment 5 ~ 45¡æ, 20 ~ 80%RH (Non-condensate)
Storage Environment -40 ~ 55¡æ,≤90%RH (Non-condensate)
