**Note: Care should be taken not to short circuit these batteries because they don't have any built-in protection circuit.
**Note: Over-Charge and Over-Discharge will damage the LiPo battery and it is not covered in the warranty.
**Note: Use it with care.
Product Specification:
1) Type of Battery : LiPo (Lithium Polymer Battery)

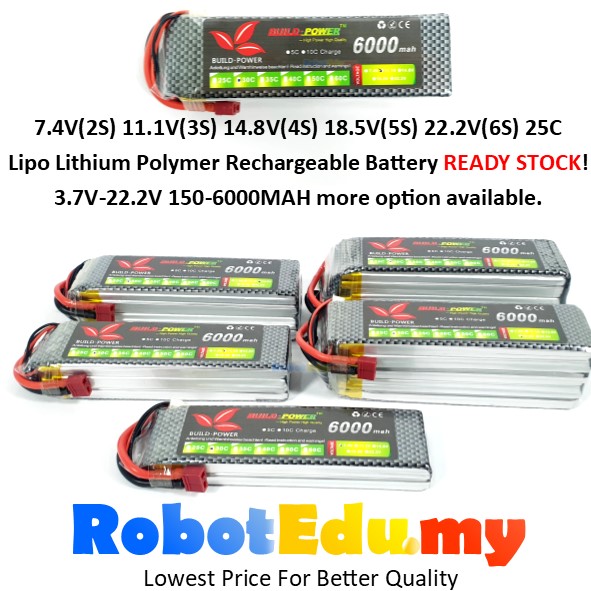

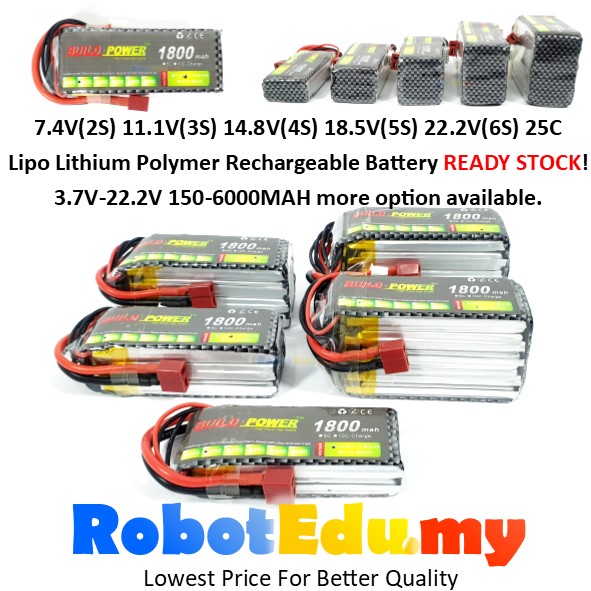

2) Voltage Level(DC) : 7.4V(2S) , 11.1V(3S) , 14.8V(4S) , 18.5V(5S) , 22.2V(6S).
3) Battery Cell : 2-6S
4) Discharger Rate(C) = 25/30/40C
5) Capacity : 100-10000mah
6) Battery output connector : Red T Dean Plug
7) Size : Higher capacity & voltage, then size bigger
(Latest product size please chat with Live Agent to double check)
(Different batch battery, size might have slightly different)
Tolerance 5mm+-
7.4V 2s 25C 800mAh= 62*25*15mm
7.4V 2s 25C 1100mAh= 55*26*15mm
7.4V 2s 25C 1500mAh= 71*33*17mm
7.4V 2s 25C 1800mAh= 75*26*19mm
7.4V 2s 25C 2200mAh= 108*34*16mm
7.4V 2s 25C 2600mAh= 105*34*20mm
7.4V 2s 25C 3000mAh= 138*41*13mm
7.4V 2s 25C 5000mAh= 139*44*22mm
7.4V 2s 25C 6000mAh= 146*53*19mm
11.1V 3s 25C 1100mAh= 55*25*25mm
11.1V 3s 25C 1500mAh= 74*32*25mm
11.1V 3s 25C 1800mAh= 110*33*21mm
11.1V 3s 25C 2200mAh= 110*34*23mm
11.1V 3s 25C 2600mAh= 110*34*29mm
11.1V 3s 25C 3000mAh= 138*41*18mm
11.1V 3s 25C 5000mAh= 140*45*29mm
11.1V 3s 25C 6000mAh= 150*53*26mm
14.8V 4s 25C 1500mAh= 75*35*35mm
18.5V 5s 25C 1500mAh= 75*35*42mm
22.2V 6s 25C 1500mAh= 75*35*45mm
**Battery Charger is not included!**
Suggested Lipo Charger :
7.4V 2S / 11.1V 3S = B3 Charger
7.4V - 22.2V 2-6S = IMAX B6 Charger
Take Note:
Lipo Battery got minimum voltage for charging.
Please charge until full voltage before use.
Battery Level Reference :
2S 7.4V+- (Nominal Voltage) = 8.2V+- (Fully Charged)
3S 11.1V+- (Nominal Voltage) = 12.3V+- (Fully Charged)
4S 14.8V+- (Nominal Voltage) = 16.4V+- (Fully Charged)
5S 18.5V+- (Nominal Voltage) = 20.5V+- (Fully Charged)
6S 22.2V+- (Nominal Voltage) = 24.6V+- (Fully Charged)
*Please don't use less than Nominal Voltage, that will caused LiPo Battery spoil / cannot be charge.
All battery are tested before shipping out.
Items is ready stock in Malaysia(Selangor).

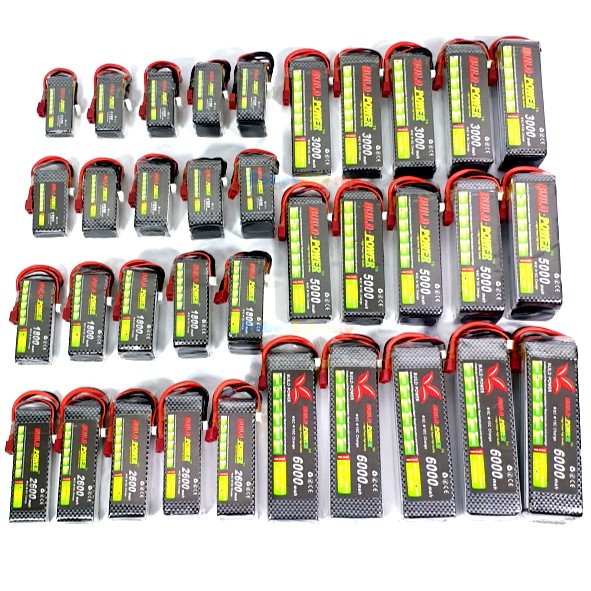

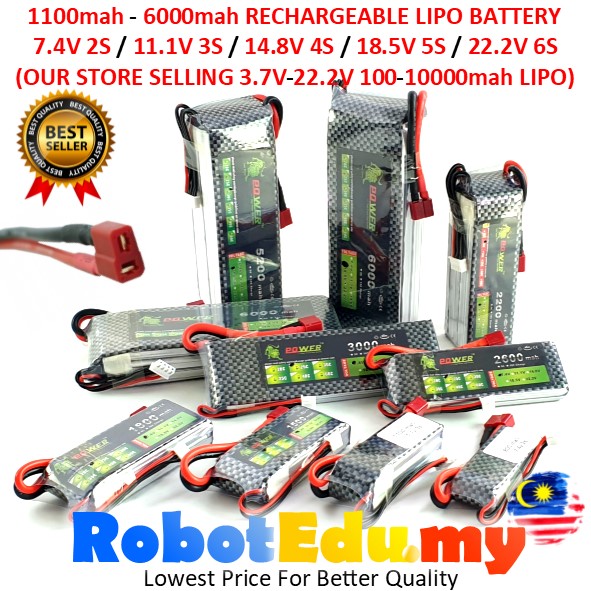

Our store selling all 1-6S Lipo Battery with different Capacity.
Capacity : 100mah -10000mah
Standard Discharge Rate : 10C-60C
*Pre-order for large quantity / other capacity / higher discharge rate.
Whats App : +6016 625 0129 (Mr Lim)

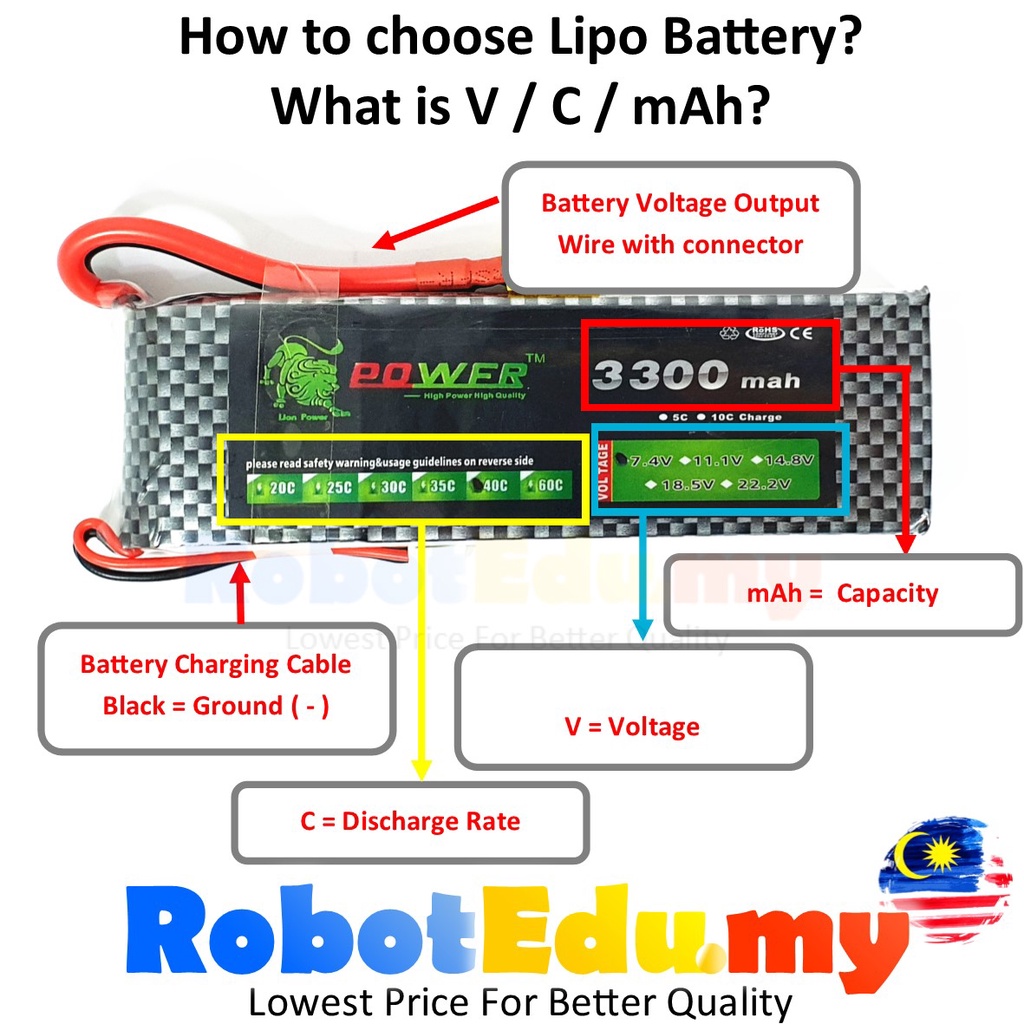

Battery Tips/ Tutorial :
1) What is V?
V = Voltage, DC output voltage, Red = Positive (Anode), Black = Negative (Ground).
2) What is S?
S = cell, 1 cell = 3.7V.
Sample : 3S = 3 cells x 3.7V = 7.4V(Total Output Voltage)
3) What is C?
Discharge Rate, higher discharge rate & capacity can provide higher ampere.
Reference Link : https://www.radiocontrolinfo.com/best-c-rating-for-rc-lipo-battery/
4) What is mAh?
mAh = milliampere-hour (milli ampere per hour). The battery capacity.
5) Should I charge the battery 1st before use?
Yes, battery is under Storage Mode during shipment.
You need to charge it until FULL Voltage 1st before use.
